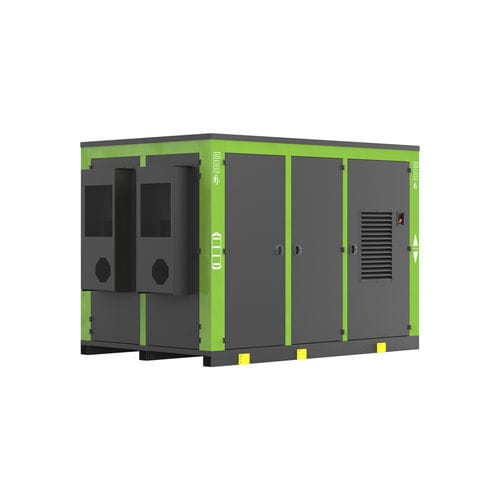

Li-ion energy storage system zeroCO2 - XL Shell (54/98)K

three-phase

On Grid solutions for C&I systems up to 0.5C The zeroCO2 - XL Shell (54/98)K series is a plug & play system for managing, converting and exploiting energy in systems with high power demand and storage size where deferred use for several hours of all the accumulated energy is needed. Made with a load-bearing structure of powder-coated galvanized sheet metal with insulated and sealed infill panels of IP54 degree protection, inside which the electrochemical storage batteries and the electrical power panel are housed including PCS converters, EMS device, on-board disconnectors and panel protections; all pre-wired from the factory up to the user-side interfaces. The modularity on the storage and inverter side and the possibility of connecting several systems in parallel without a maximum limit, make it particularly suitable for outdoor installations with a large surface area, arranging storage systems whose size can be between a few hundred kWh and MWh. Main features: Possibility of parallel installation Compatible with Pylontech batteries IP54
