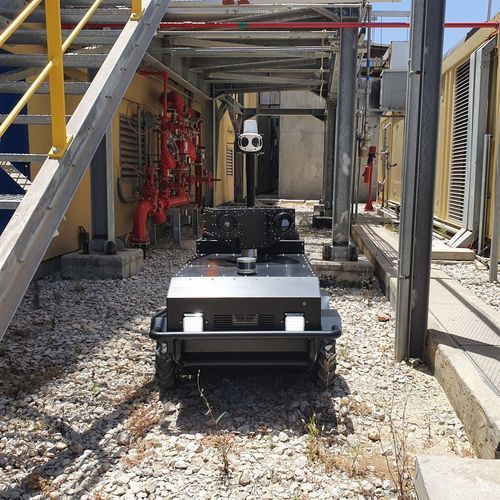

Autonomous surveillance robot P-Guard

mobileexteriorfor industrial sites

Overview The intelligent autonomous patrol robot P-Guard is an all-terrain mobile platform designed for continuous patrolling and security operations. It integrates navigation, payload (sensors & cameras) and communication systems to support autonomous missions and remote-operated interventions.

Key capabilities P-Guard performs across site types and weather conditions, combining autonomous patrol routines with remote verification and two-way tele-interpellation to support security teams.

Main missions

• On-demand intervention via 'Click & Go' function
• Randomized patrol routes and hideout checks
• AI-based anomaly and intrusion detection
• Remote verification and questioning for incident clarification

Operational uses

• Routine security patrols
• Real-time remote control with anti-collision safety
• Escorts in high-risk or restricted areas
• Temporary surveillance for construction and event sites

Mobility and endurance P-Guard is all-terrain with climbing ability up to 20 cm on slopes of up to 25°. It uses four driven wheels each powered by an electric motor, reaches up to 12 km/h and operates from -20°C to +50°C. Continuous patrol autonomy is 8 hours; the robot automatically returns to its charging station when batteries are low and reaches full charge in 2 hours. Battery lifespan is approximately 3,000 charge cycles.

Navigation & communications Navigation provides centimeter-level positioning and high repeatability. Telecommunication works via secure Wi‑Fi (Mesh) or public/private 4G networks. The platform detects and avoids static and dynamic obstacles and supports secure tele-operation via joystick.

Payload — Image & Sound Onboard payload includes four HD color cameras for immersive 360° coverage plus a panoramic turret. The turret houses a thermal camera and a day/night camera with 32x optical zoom and adaptive IR illumination, enabling observation up to 500 m. Two loudspeakers and one microphone enable remote communication and tele-interpellation.

Visibility & deterrence Fitted with a beacon light and two LED headlights, P-Guard ensures day/night visibility to deter intruders and reduce collision risk. Total weight (including payload) is 250 kg; dimensions L 150 cm × W 110 cm × H 160 cm, providing a stable and deterrent platform.

Caractéristiques / Spécifications techniques

• Commercial name: P-Guard
• Manufacturer / Brand: Enova Robotics
• All-terrain capability: climb up to 20 cm on inclines up to 25°
• Drive: four driven wheels with four electric motors
• Maximum speed: 12 km/h
• Operating temperature range: -20°C to +50°C
• Autonomy: 8 hours continuous patrol
• Charging: automatic return to charging station; full charge in 2 hours
• Battery life: ~3,000 recharge cycles
• Total weight (including payload): 250 kg
• Dimensions (L×W×H): 150 cm × 110 cm × 160 cm
• Navigation precision: centimeter-level positioning and high repeatability
• Connectivity: secure Wi‑Fi (Mesh) and public/private 4G
• Obstacle handling: detection & avoidance of static and dynamic objects
• Remote operation: secure tele-operation via joystick; real-time remote control with anti-collision safety
• Cameras: 4 HD color cameras (360°) + panoramic turret
• Turret sensors: thermal camera + day/night camera with 32x optical zoom and adaptive IR illumination (observation up to 500 m)
• Audio: 2 loudspeakers and 1 microphone for remote communication / tele-interpellation
• Lighting: beacon light and two LED headlights
