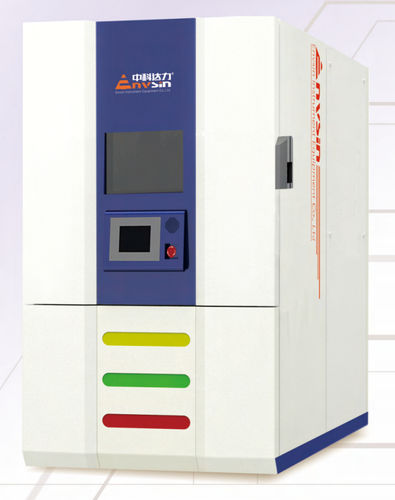

Thermal shock test chamber ETS-S2 series

climatictemperaturestability

The Rapid-Rate Thermal Stress Test Chamber consists of high temperature zone (preheat zone) and low temperature zone (precool zone). The samples are put on a platform which can move fast from cold zone to hot zone to make a thermal shock test. The testing samples can transfer rapidly from different temperature zones with time less than 10 seconds, which is much faster than the High and Low Temperature (2-zone) Thermal Shock Test Chamber. This kind of test chambers is designed to test the reliabilities to rapid-rate temperature change of a complete product, machine components and parts and materials. It can test the samples’ chemical changes or physical damages aroused by thermal expansion in the shortest time, and also know of the effects on the samples under one or several times of tests with rapid-rate temperature change. Features • Modular fabrication technique. • Long defrosting cycles: 700H above. • Breakthrough design: the time of temperature changing rate can reach 10 seconds. • Intelligent 32 bit measuring and control system with colorful screen. Interface USB and Ethernet. • APP mobility management. • Power-failure and power-recovery operation selection. • The smart program protects all equipments by monitoring overcurrent, overheat , abnormal power supply and other working malfunctions. • Independent thermal protector and sensors keep test specimen off over temperature, breezeless and smog. • Environmental servo refrigerant flow control for energy saving and quick heat-up/cool-down rate.
