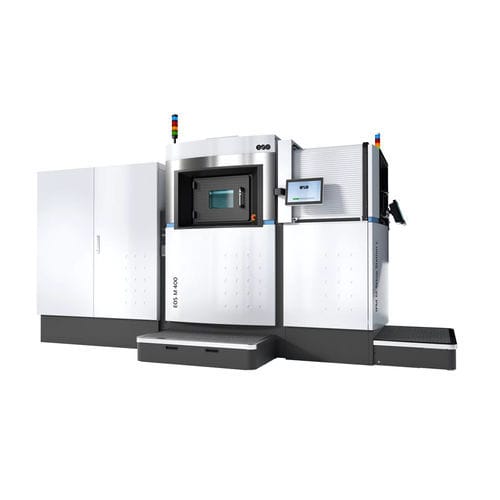

Metal additive manufacturing machine M 400

stainless steelindustrialDMLS

Exceptional Quality at High Volume Ideal for serial manufacturing of large metal parts, the EOS M 400 delivers repeatable excellence. Highly Productive 1000-watt laser power increases productivity with higher build rates and thicker layers. Ideal for serial manufacturing of large metal parts. Easy to Use Coating both sides with powder material reduces production downtime. A circulating air filtering system with automatic cleaning means fewer filter changes and longer service life. Broad Portfolio of Materials A comprehensive collection of materials is available, from light metals to stainless steel, tool steels and super alloys. • Laser Type : Yb-fiber laser; 1 x 1000 W • Presicion Optics : 1 F-theta-lens(es); 1 High-speed scanner(s) • Scan Speed : up to 7.0 m/s (23.0 ft/s) • Focus Diameter : approx. 90 µm (0.00354 in) • Power Supply : 1 x 50 A • Power Consumption : max. 50.2 kW / typical 16.2 kW • Compressed Air Supply : 7 Bar; 20 m³/h (102 psi; 706 ft³/h) • Machine Dimensions : 4181 x 1613 x 2355 mm (164.6 x 63.5 x 92.7 in) • Recommended Installation Space : min. 6500 x 6000 x 3300 mm (255.9 x 236.2 x 129.9 in)
