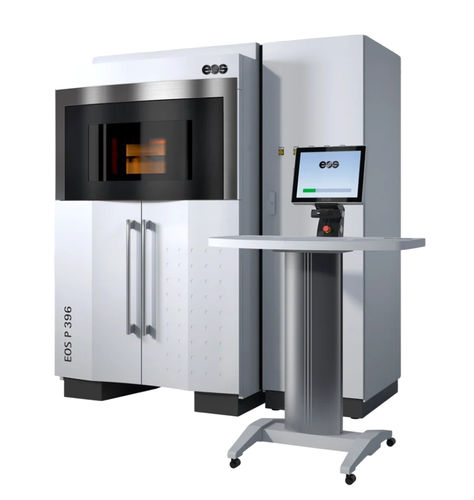

Industrial additive manufacturing machine P 396

digitalhigh-performancehigh-speed

Reliable Production with the Industry‘s Largest Material Portfolio The medium-sized bestselling EOS P 396 enables a flexible and tool-free production of everything from spare parts on-demand, to serial production. Vast of Materials Support for 14 materials and 26 parameter sets enable a multitude ofapplications. One machine can fulfill the requirements of many industries. Quality of Parts All 3D printed parts with excellent mechanical properties anddimensional accuracy due to software features such as Smart Scaling,EOSAME and a continuous temperature monitoring. Digital Production Full integration into the lloT environment with EOSCONNECT Core resulting in an entirely digital process chain from the CAD model, through ERP and MES connection, to the finished part. Laser Type - CO₂; 1 x 70 W Scan Speed - up to 6.0 m/s (19.7 ft/s) Power Supply - 1 x 32 A Power Consumption - max. 10.0 kW / typical 2.1 kW Machine Dimensions - 1840 x 1175 x 2100 mm (72.4 x 46.3 x 82.7 in) Recommended Installation Space - min. 4300 x 3900 x 3000 mm (169.3 x 153.5 x 118.1 in) Weight - approx. 1060 kg (2337 lbs) Software - EOS SYSTEM SUITE Materials & Processes EOS has extremely high materials expertise and a comprehensive portfolio of highly developed polymer materials for additive manufacturing. Our materials, systems and process parameters fit together optimally. With the right materials, you can realize the target property profiles in the best possible way for your products. Explore below which polymer materials and processes are compatible with the EOS P 396.
