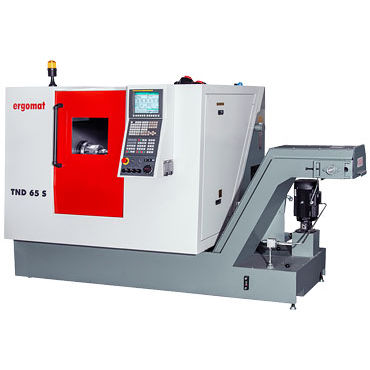

CNC turning center TND 42/65 s
2-axisuniversal

CNC turning center
CNC turning center
CNC turning center
Add to favorites
Compare this product


Characteristics

Control type
CNC
Number of axes
2-axis
Other characteristics
universal

Description

Upper turret 12 positions VDI 25 live tools available Main spindle The machine comes standard with a clamping system by collets DIN 6343 up to 60 mm; other collet systems up to Ø 65 mm are available. Subspindle Clamping collets DIN 6343 up to 42 mm or other commercially available collet systems Option: chuck Ø 85 mm. Work pieces up to Ø 30 mm can be unloaded through the subspindle. Lower turret 8 positions VDI 25 Live tools available Parts catcher An unloading shell, mounted on the lower turret leads the machined parts to a conveyor belt with exit on the left side of the machine.
