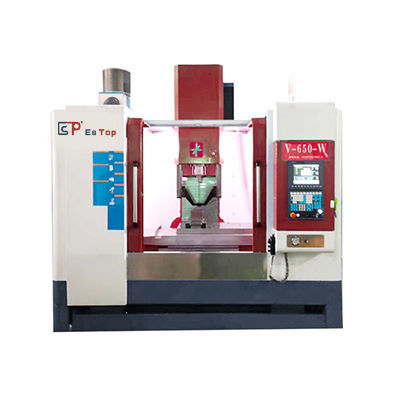

CNC deep hole drilling machine THD-V650

verticaldeep holehigh precision

Product name
Vertical deep-hole drilling machine THD-V650 for small-diameter deep hole drilling

Overview

• Designed for machining medium and small molds and parts.
• Suited for small-diameter deep-hole drilling and micropore processing.
• Vertical spindle configuration simplifies workpiece setup for compact components.

Applications

• Mold manufacturing and repair.
• Precision components requiring deep small-diameter holes (fuel injectors, hydraulic components, aerospace parts).
• Prototyping and small-batch production.

Technical specifications

• Processing aperture (OD): 1.0–25 mm
• Travel (X×Y×Z): 600 × 400 × 480 mm
• Table size: 700 × 420 mm
• Maximum drilling depth: 200 mm
• Maximum table load: 2000 kg
• Maximum spindle speed: 8000 rpm
• Overall dimensions (L×W×H): 2384 × 2268 × 2600 mm

Operation & integration

• Compatible with common tooling for small-diameter deep drilling.
• Table capacity supports heavy molds and fixtures up to 2000 kg.
• Compact footprint suitable for production cells and toolrooms.
