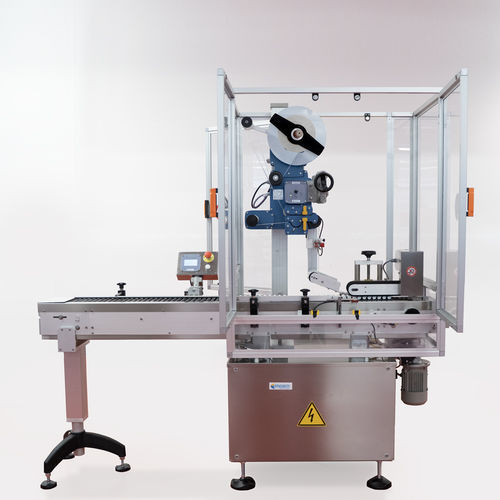

Automatic labelling machine Sistema 3

for bottleswrap-aroundfor the cosmetics industry

Product summary
Labelling system for wrap-around or semi-wrap application on unstable or irregular cylindrical products. Production speed up to ≤ 6000 pcs/h. Labeller model: Energy. System: System 3.

Overview
The System 3 series is a customizable automatic labelling line designed to move and label products horizontally, either as a compact standalone line or integrated with upstream/downstream packaging equipment. The integrated roller transport improves stability and precision for irregular geometries. Optional vertical transfer and 90° automated rotation are available to stabilise products for horizontal labelling.

Applications

• Cosmetics
• Plastics
• Various industrial sectors

Versatile solutions and custom configurations

• Single or multiple labelling in different positions
• Handling of unstable formats with horizontal roller conveyors (continuous or intermittent motion)
• Oversized and motorised label roll holders for extended autonomy
• Multi-head configurations with automatic switching in continuous (NON-STOP) mode
• Configurable transport (custom belt width/length, variable speed, modular entry guides for manual loading)

Main features of the labelling system

• Painted steel frame with stainless steel panels
• Height-adjustable anti-vibration feet
• Customisable conveyor belt with variable speed and configurable entry guides
• Adjustable safety protections under the transport
• Advanced optical sensors (Laser Reflex) for precise detection
• Labelling module with micro-adjustments on one or more axes for accurate centring
• Electrical cabinet with main controls and ergonomically positioned user interface
• Alarm contacts for line stop and multilingual documentation (digital and paper)

Technical specifications

• Production speed: from ≤ 3000 to ≤ 6000 pcs/h
• Labeller model: Energy
• Product Ø: 10–50 mm
• Product width: 30–180 mm
• Product type: unstable cylinder
• Outside label roll Ø: ≤ 380 mm
• Inside roll core Ø: 40–75 mm
• Power supply: 230 V, 50–60 Hz
• Electrical input: ≤ 1000 W
• Overall size (L×W×H): 2500 × 1000 × 2000 mm
