Overview

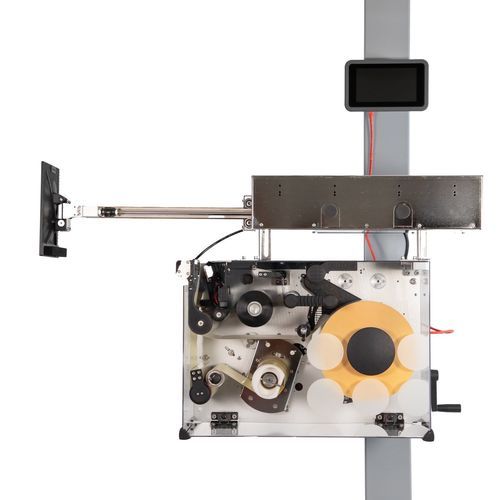

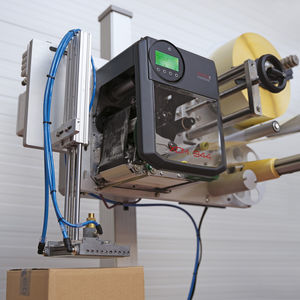

Electric print-and-apply labelling system for real-time label printing and application on products and packaging. Configurable with different applicators; the printer unit is fully electric and does not require compressed air. Designed for variable data printing (barcodes, logistics and traceability) and automatic application to product or packaging.

Key points

• Sixth-generation Print & Apply system by EIDOS
• Fully electric architecture — no compressed air required for printer electronics and basic functions
• Modular, compact solution for industrial production lines

Printing performance
PTS provides high printing speeds depending on material and printhead width.

• Up to 1,000 mm/s on plastic materials
• Up to 600 mm/s on coated paper
• Up to 500 mm/s on vellum paper
• Printing width up to 160 mm (6" printhead)

Compatible applicators
Supported applicator types include Linear, Rotor (e.g. Rotor Fast) and Delta-V. Some applicators may require compressed air at 6 bar when demanded (peak 40 l/min, average 5–6 l/cycle).

Print & apply unit features

• Modular structure with interchangeable 4", 5" or 6" printheads
• Smart X-Motor servo-assisted technology (no compressed air required for printer operation)
• Advanced ribbon-saving system
• Replaceable QuickTronic X-Changer electronics with hot-swap function
• Management and diagnostics via web browser from PC, tablet or smartphone
• Optional 7" HMI interface with PoE
• Ribbon rolls up to 1,200 metres for longer production autonomy
• Quick access to components for maintenance and consumables replacement
• Extensive connectivity: Ethernet, Wi‑Fi, RS232, USB, CAN Bus and digital I/O

Available options

• Label start/stop
• Start photocell
• PC integration
• Label design software
• Cables and interface modules
• Labelling verification control
• Floor-standing support structure
• Bridge support structure
• Safety guarding
• Label presence photocell on applicator pad

Technical specifications (table)
Features — PTS — PTS-XT
Print speed up to — max 1000 mm/s — max 1000 mm/s
Label size (width x step) — up to 160 x 210 mm — up to 160 x 210 mm
Print area — 107, 128 or 160 mm — 107, 128 or 160 mm
Type of printing — Thermal transfer / direct thermal — Thermal transfer / direct thermal
Outside reel Ø — max 250 mm — max 350 mm
Inside reel Ø — 76 mm — 76 mm
Power Supply — 48 Vdc - 320 W — 48 Vdc - 320 W
Compressed air — Doesn't require compressed air — Doesn't require compressed air
Barcodes — All major 1D and 2D barcode standards — All major 1D and 2D barcode standards
Printhead — 4", 5" or 6" interchangeable — 4", 5" or 6" interchangeable

Applications / Typical sectors

• Beverage
• Chemical
• Cosmetic
• Plastics
• Paper & Converting
• Other industrial sectors

Characteristics / technical summary

• Series / Model: PTS
• Printing technologies: Thermal transfer and direct thermal
• Max printing speed: up to 1000 mm/s (material-dependent)
• Max print width: 160 mm (6" printhead)
• Label roll outside diameter: up to 250 mm (PTS) / up to 350 mm (PTS-XT)
• Core diameter: 76 mm
• Power supply: 48 Vdc - 320 W
• Compressed air: not required for the printer unit; some applicators may require 6 bar supply (peak 40 l/min, avg 5–6 l/cycle)
• Connectivity: Ethernet, Wi‑Fi, RS232, USB, CAN Bus, digital I/O
• Optional interface: 7" HMI with PoE
• Ribbon capacity: up to 1,200 m
• Modularity: interchangeable 4", 5" or 6" printheads; compatible with Linear, Rotor, Delta-V applicators
• Management: web-based diagnostics and control via PC/tablet/smartphone
