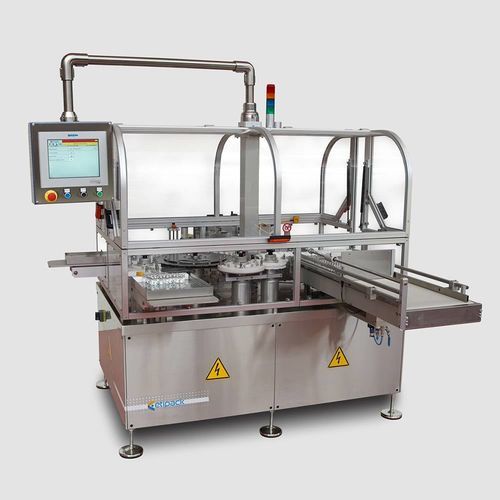

Automatic labelling machine Pharma Flexi

syringefor bottlesfor vials

Overview
Automatic high-speed labelling system for cylindrical pharmaceutical products (vials, bottles, carpules, syringes). Designed for stand-alone use or inline integration, Pharma Flexi handles varying product heights and unstable items while achieving labelling speeds up to ≤ 400 pcs/min. The system is built to GMP guidelines for pharmaceutical production.

Main components and operation
The machine includes an infeed belt, an auger (cochlea) for spacing, conveying and phasing devices, and a rotary carousel with dedicated housings located at the labelling station. Labels are applied while the product passes the station; a rotation device (DRP) completes application by rotating the product. In stand-alone mode a low-grip conveyor accepts manually loaded trays and separate unloading trays collect conforming and non-conforming products.

Control and verification
Control is via a pivoting mobile arm with HMI (PC ASEM) and Siemens S7 PLC for peripheral diagnostics, FailSafe management, batch handling and event/alarm reporting. A label-check station with UV (electroluminescence) sensor is included. The system can integrate a printing unit for variable-data overprinting and a vision system for print/overprint verification and OCV/OCR/barcode checks.

Reject and output management
Advanced reject management is provided by two output carousels with suction separation and a static tray conveyor to segregate compliant and non-compliant products, ensuring controlled handling of rejects.

Design and maintenance
Carousel and guides are manually changed without tools for fast format change. The Energy 100 high-production labeler (Kanigen treatment) uses a stepper motor with magnetic encoder suitable for high-speed dispensing. The control panel provides access to wiring diagrams and manuals to support maintenance operations.

Features

• Painted steel supporting structure with anti-vibration design and adjustable stainless-steel feet
• Control electronics integrated into machine body (PLC Siemens S7)
• HMI PC ASEM on tilting stainless-steel arm
• Emergency, reset, stop and run controls
• Conveyor belt for product feeding with manual tray unloading
• Minimum input load control
• Feeding auger with dual micro-adjustment
• Double input carousel with quick format change
• Special labeler (Kanigen treatment) for high production; reel handling and mechanical adjustments external to guards
• Product rotation device (DRP) to complete label application
• Single UV barrier for label verification (labels must react to UV)
• Static collection trays for compliant and non-compliant products
• Presence detection and maximum tray load monitoring
• Compressed-air system with isolator, pressure switch and main gauge (non-lubricated air ≤ 6 bar)
• Aluminium and polycarbonate safety guards

Available ancillary devices

• Format changeovers: 18, 27 or 36 cavities
• TTO printing unit with micro-adjust compensator and position counter
• Barcode and/or OCR/vision inspection
• Serialization system
• Ultrasonic sensor for transparent labels

Technical data
Production speed* — ≤ 400 pcs/min
Labeler model — Special labeler (Kanigen treatment) / Energy 100
Size L × W × H — 2740 × 1940 × 2080 mm
Product diameter (min–max) — Ø 10.75 mm – 25.00 mm
Outside reel Ø — ≤ 380 mm
Power supply — 230 V, 50–60 Hz
Electrical input — 1000 W

Notes
The rotary handling stabilizes unstable and varying-height products, enabling very high labelling speeds. Carousel and guides enable quick manual format changes without tools. Part of the Etipack Pharma line for labelling, coding, serialization and track & trace in pharmaceutical production.

Technical specifications (summary)

• Production speed: ≤ 400 pcs/min
• Labeler: Energy 100 high-production labeler, special labeler (Kanigen treatment)
• Machine dimensions (L × W × H): 2740 × 1940 × 2080 mm
• Product diameter range: 10.75 – 25.00 mm
• Maximum outside reel diameter: ≤ 380 mm
• Power supply: 230 V, 50–60 Hz — Electrical input: 1000 W
• Control: Siemens S7 PLC; HMI PC ASEM on tilting arm
• Quality controls: UV sensor for label presence, integration of print and vision for overprint/OCV/OCR/barcode
• Reject handling: two output carousels with suction and static tray loader
• Compliance: designed to GMP guidelines, CFR21-capable event/alarm reporting
