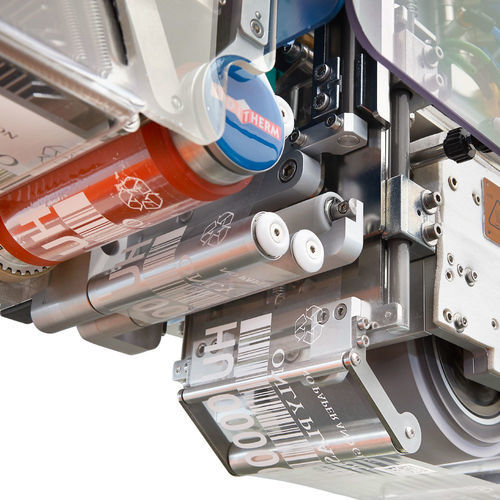

Thermal transfer printer Coditherm

for integrationwith touchscreenhigh-definition

Overview
Coditherm is an industrial printer using thermal transfer technology for direct in-line coding on production lines. It is designed for marking small batches and for frequent updates of data and barcodes. The system produces high-definition prints resistant to solvents and abrasion on a wide range of surfaces, including plastic, paper, cardboard, wood, leather, rubber and painted metal, and is suitable for irregular or porous substrates.

Applications

• Medical components
• Wires and cables
• Identification tags and security seals
• Plastic containers
• Tubular products
• Electrical components
• Other industrial items requiring durable direct marking

Versions and adaptions
The Coditherm printer is available in several versions: Flat, Round, Pad, H-Pad and I-Roller, enabling printing on flat or contoured surfaces, round or conical objects, recessed areas and infrared applications. Each version supports a range of mounts and accessories to adapt the printer to specific production requirements.

Printing technology
Coditherm uses a patented dual-ribbon thermal transfer technology (ink transfer ribbon + receiving ribbon) that delivers high-definition, durable prints. Ribbons are supplied on 500 m rolls and a wide range of ribbon grades is available, including metallic finishes.

Technical specifications

• Printing Type: Patented dual-ribbon thermal transfer technology (ink transfer ribbon + receiving ribbon)
• Printing Speed: Up to 120 mm/s, depending on transfer unit configuration and ribbon grade
• Digital Print Area: Up to 90 × 330 mm, depending on transfer unit version installed
• Printhead Resolution: 300 dpi
• Display: 5.7" TFT colour touchscreen HMI (Human Machine Interface)
• Power Supply: 220 VAC, 50 Hz or 110 VAC, 60 Hz
• Compressed Air: 6 bar, regulated, filtered and oil-free
• Thermal Ribbons: Ink transfer ribbon and receiving ribbon supplied in 500 m rolls. Wide range of ribbon grades available, including metallic finishes
