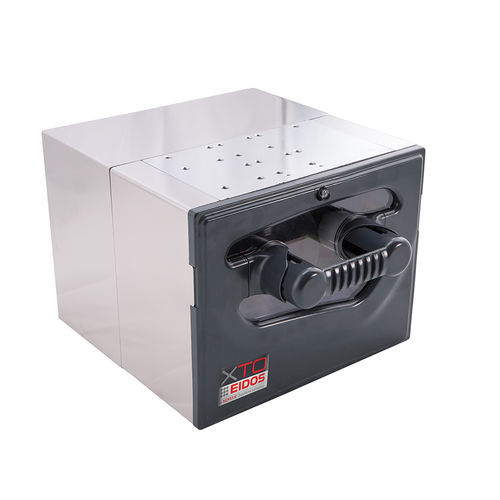

Integration thermal transfer overprinter XTO

with touchscreenhigh-accuracycontinuous

Overview
XTO is an OEM industrial thermal transfer (TTO) printing module designed as an independent, self-contained unit for integration into new or existing production lines and Print & Apply systems. It prints variable data directly on packaging films in continuous or intermittent mode and is compatible with Etipack systems and standard mounting sizes.

Key benefits

• OEM module for straightforward integration into production lines and Print & Apply equipment
• High-precision thermal transfer printing for text, barcodes and logos
• Operates in continuous and intermittent modes to support different line types
• Modular, self-contained design for easy installation on new or existing lines
• Compatible with Etipack systems and standard mountings

Application sectors

• Beverage
• Chemical
• Cosmetic
• Food
• Paper & Converting
• Plastic
• Promotional
• Other industrial applications

Printing capabilities & features

• Printing technology: Thermal transfer overprinting (TTO)
• Print content: text, barcodes and logos
• Supported graphic formats: BMP, JPG, TIFF, PNG, GIF, PCX
• Operational modes: continuous and intermittent (variable-data printing)
• Modular design with compatibility to standard mounting sizes
• HMI: 7-inch color capacitive touchscreen; powered via Ethernet; intuitive multilingual UI; Dimensions: 215 x 133 x 33 mm (W/H/D)

Technical table (summary)
Model | INTERMITTENT | CONTINUOUS
Printing | Thermal transfer | Thermal transfer
Speed | 300 mm/s (within safe operating area); up to 1000 mm/s (feasibility check required) | 100–500 mm/s (within safe operating area); min. 25 mm/s – max. 700 mm/s (feasibility check required)
Print area | 53 x 100 mm | 53 x 600 mm
Resolution | 300 dpi; 12 dots/mm | 300 dpi; 12 dots/mm
Graphic formats | BMP; JPG; TIFF; PNG; GIF; PCX | BMP; JPG; TIFF; PNG; GIF; PCX
Barcodes | Printing of text, barcodes and logos. | Printing of text, barcodes and logos.
HMI | 7-inch color capacitive touchscreen; powered via Ethernet; intuitive multilingual UI; Dimensions 215 x 133 x 33 mm (W/H/D) | 7-inch color capacitive touchscreen; powered via Ethernet; intuitive multilingual UI; Dimensions 215 x 133 x 33 mm (W/H/D)

Characteristics / technical specifications

• Printing technology: Thermal transfer overprinting (TTO)
• Modes: Intermittent and Continuous
• Intermittent speed: typically 300 mm/s; feasibility up to 1000 mm/s
• Continuous speed: typically 100–500 mm/s; operational range min. 25 mm/s – max. 700 mm/s (feasibility check)
• Print areas: 53 x 100 mm (intermittent) and 53 x 600 mm (continuous)
• Resolution: 300 dpi (12 dots/mm)
• Supported graphic formats: BMP, JPG, TIFF, PNG, GIF, PCX
• Print content: text, barcodes and logos
• HMI: 7-inch color capacitive touchscreen; powered via Ethernet; multilingual UI; dimensions 215 x 133 x 33 mm (W/H/D)
• Unit type: independent, self-contained OEM printing module with modular design for easy integration
