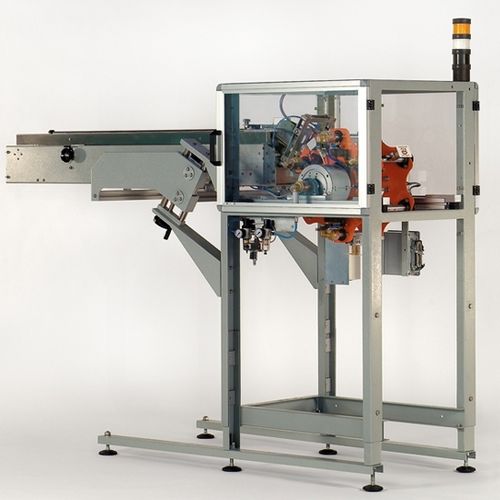

Automatic pick-and-place machine CLIPPY ROTARY
sachetflat cartonshigh-speed

automatic pick-and-place machine
automatic pick-and-place machine
automatic pick-and-place machine
automatic pick-and-place machine
automatic pick-and-place machine
automatic pick-and-place machine
Add to favorites
Compare this product


Characteristics

Applications
sachet, flat cartons
Other characteristics
automatic, high-speed, vacuum, stand-alone

Description

High speed rotary placer for high speed picking and placing of flowpack sachets, 2, 3 and 4 sides sachet, CDs, flat cartons and cards made of non-porous materials Clippy Rotary is a Pick and Place device with rotary movement that, thanks to vacuum pads, picks products from a loading stack and places them horizontally on a packaging line. The rotary movement of Clippy Rotary is especially designed to meet the requirements of highest productivity with an output speed up to 400 pcs/min. as weel as of large autonomy thanks to a horizontal loading stack equipped with a control on minimum load. The Pick and Place is ideal to dispense flowpack sachets, 2, 3 and 4 side sachets, coupons, cards and flat boxes made of non-porous materials. The programming keyboard, in the brushless version, will allow to set speed and control functions in a user-friendly way: automatic speed adjustment, multiple product distribution, control of missing picking with automatic stop. • Kinematic mechanism with rotor at 3 positions • Vacuum pads with independent electrical drive • Venturi vacuum generator • Turbine vibrator • Horizontal loading stack 1300 mm long • Encoder • Electro-pneumatic system • Control on missing picking • Safeguards • Separate control box (remote terminal up to 3 m) with integrated PLC* (brushless version) • Separate control panel (remote up to 3 m) • Brushless motor • Start for product picking and placing • Programming keyboard • Vacuum pump (according to products)

VIDEO
