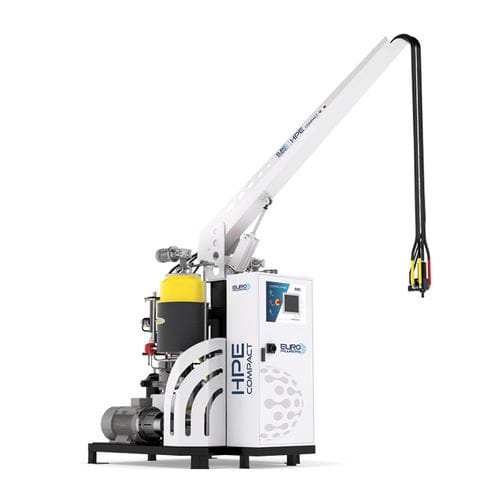

Polyurethane foam injection machine HPE COMPACT

high-pressurefor refrigeratorsfor the automotive industry

The HPE compact model, which is equipped with an 80-litre capacity tank , can also be configured in different ways: depending on the capacity and type of pumps, you can choose amongst the HPE G (with gear pumps) or HPE P models (with piston pumps); moreover, the machine can be configured with pressurized (PED certified) or non-pressurized (BASIC configuration) tanks. The HPE Compact line was designed to provide customers with a smaller and easy-to-move system (within the plant) since the tanks are mounted on a single frame. In addition to compactness, special attention was also devoted to its maintenance: the operator can easily reach the components, especially the hydraulic unit, which is installed on rails and is thus, easy to remove. The system enables mounting different types of support arms for the chemical lines: i.e. “articulated,” “swing” (as shown in the figure) or “flag.” However, new ones can be designed around customers’ specific installations. The standard high-pressure mixing head of the EPL series was built with the renowned “L chamber” system, thus ensuring excellent repeatability and quality of the foam. As for the HPE series model, this system also enables using a wide range of bi-component polyurethanes to address the various foam needs of the different application fields.
