excavator vibratory plate
EPC20

Add to MyDirectIndustry favorites
Compare this product Don’t compare this product

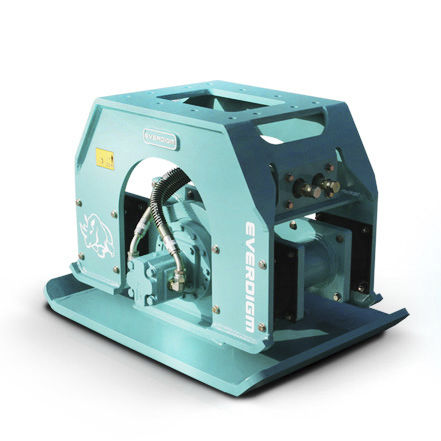

excavator vibratory plate excavator vibratory plate - EPC20
{{requestButtons}}

Characteristics

  • Type:

    for excavators

  • Carrier weight:

    Min.: 17,000 kg (37,478.6 lb)

    Max.: 25,000 kg (55,115.6 lb)

  • Weight:

    1,094 kg (2,411.86 lb)

Description

The Specification of EPC20 – Compactor includes: The impulse force of 11.2 tonnes. The mount type adapter weight, height are 1,094 Kg and 840 mm respectively. With the width of 860 mm, the dimension plate carries a dimension of 860 (L) mm and 1200 (B) mm. Its Compaction area is 1.03 Sq. Mtr, the required oil flow is 200 liters-per-minute maximum, cycle-per-minute is 2000 revolutions-per-minute. The working pressure with and without load are 138 bars and 50 bars maximum. 25 tonnes is the maximum relevant carrier weight.
