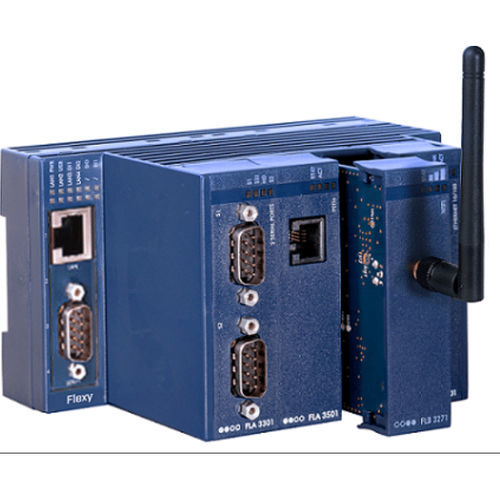

Communication gateway Flexy 103

industrialEthernetLAN

The Ewon Flexy family is a range of industrial modular gateways that allows universal communication with varied field equipment regardless of the protocol used. The Serie 100 has been designed for simple and cost effective Remote Data Collection application and doesn’t provide routing capability. It is possible to configure data acquisition & data logging, and more. The Ewon Flexy 103 is an Ewon gateway based on a MPI port. Flexy Serie100/200: Flexy are available in two series. The Serie 100 has been designed for simple and cost effective Remote Data Collection application and doesn’t provide routing capability between Lan and VPN interface. The Serie 200 provides full features. Data Acquisition Protocols: OPC UA, MODBUS/RTU, MODBUS/TCP, Unitelway, DF1, PPI, MPI (S7), PROFIBUS (S7), FINS Hostlink, FINS TCP, EtherNet/IP™, ISO TCP, Mitsubishi FX, Mitsubishi Melsec, Hitachi EH, ASCII, BACnet/IP. Stored in max 2500 internal tags. Data Publishing Protocols: OPC UA, Modbus, MQTT, SNMP, HTTPs. Alarms: Alarms notification by email, SMS, FTP put and/or SNMP traps. 4 Thresholds : low, lowlow, high, highhigh + deadband and activation delay. Datalogging: Internal database for data logging (real-time logging and historical logging up to 1,000,000 timestamps). Historical data can be exported to DataMailbox or transferred by FTP or email. SD card reader: A/ for easy commissioning (firmware upgrade, backup, Talk2M registration) B/for Extended User Memory.
