USB network card FLB3601_00
PCI Expressindustrial

USB network card
USB network card
Add to favorites
Compare this product


Characteristics

Bus standard
PCI Express
Network
USB
Applications
industrial

Description

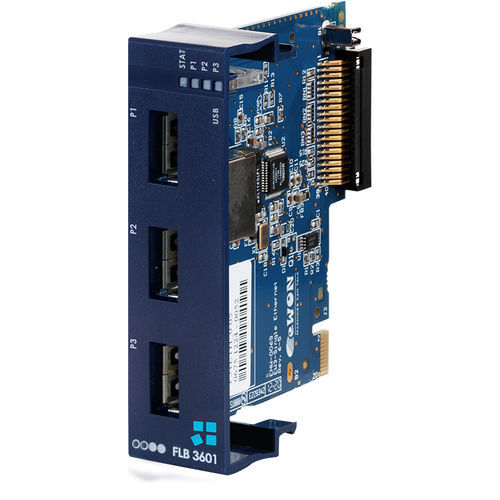

This Flexy extension card increase the connectivity capability of the Ewon Flexy with 3 USB ports. The Flexy USB card provides OEM and system integrators an additional way to connect to their industrial devices. Many small automation devices have seen their programming port which in the past worked through serial connectivity be replaced by USB connectivity. The 3 ports USB card is a 2.0 version at full speed and can pilot up to 10 USB connections. It is compatible with the Ewon Flexy 10x series, 20x series and 205. Leds 4 leds:1 global status, 1 for each port status. Connector Type A female Current limit - Each port has its own 500mA current limit . Global current limit on the board is 500mA Port activation - All ports will be enabled/disabled together Isolation - Earth GND isolation is limited to 500V due to USB connector design Operating temp. - -25 to +60°C Marking - CE, cURus, FCC, UKCA
