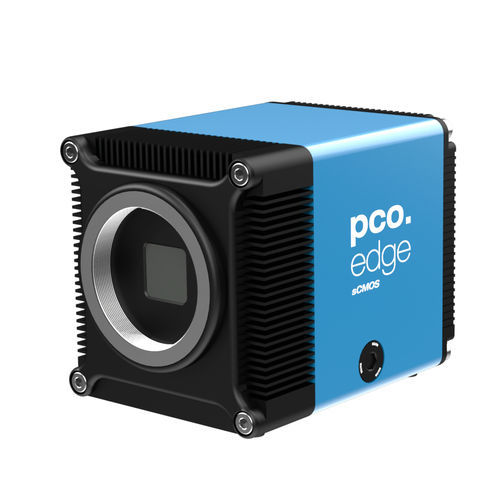

Microscope camera pco.edge 26

for scientific applicationsdigitalscientific vision

Excelitas pco.edge 26 USB sCMOS camera features a 5120 x 5120 pixel resolution with 2.5 x 2.5 µm pixel size to achieve highest spatial resolution critical for imaging in microscopy, quality control, high throughput screening, and other mesoscopic applications. The pco.edge 26 camera also offers optimal performance for microscopy imaging with low magnification. In addition, its true charge domain global shutter allows for an exceptionally low readout noise and dark current. Combined with its adjustable cooling feature, the pco.edge 26 allows extended exposure times of up to 60 seconds. Interface USB 3.1 Gen 1 Sensor technology sCMOS Color type monochrome Resolution 5120 x 5120 pixels Sensor diagonal 18.1 mm Pixel size 2.5 x 2.5 μm Maximum frame rate @ full resolution 6 fps Maximum pixel rate 157 MPixel/s Peak QE 72 % @ 500 nm Typ. read noise1 2.3 e- Dark current @ sensor temperature 0.09 @ -10 °C e-/pixel/s Maximum dynamic range 2000 : 1 Shutter type Global Shutter Sensor cooling2 air & water Dimensions (H x W x L) 85 x 80 x 109 mm
