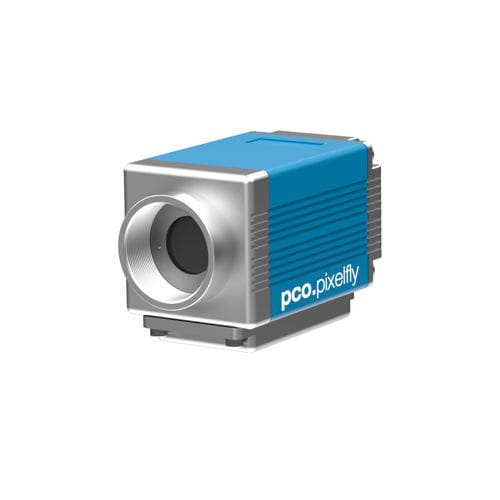

USB 2.0 camera pco.pixelfly 1.4

industrialdigitalmachine vision

The Excelitas pco.pixelfly 1.4 USB is a high-performance digital 14-bit CCD camera featuring state of the art CCD and electronics technology. This camera has a high quantum efficiency, high dynamic range and very low readout noise. Available exposure times range from microseconds to a minute. The pco.pixelfly 1.4 with USB interface includes two models with monochrome or color sensors at 1.4 MPixel resolution. The powerful 14-bit cameras are ideal for use in industry and research and are characterized by high quantum efficiency, a large dynamic range, very low readout noise and a robust, ultra-compact design with temperature compensation. The data transfer and power supply run directly via the USB port. Interface USB 2.0 Sensor technology CCD Color type monochrome or color Resolution 1392 pixel x 1040 pixel (normal) 800 pixel x 600 pixel (center ROI) Sensor diagonal 11.2 mm Pixel size 6.45 μm x 6.45 μm Maximum frame rate @ full resolution 7.3 / 13.5 fps (12 / 24 MHz, normal) 11.7 / 21.6 fps (12 / 24 MHz, center) Maximum pixel rate 19.5 MPixel/s Peak QE 62% Typ. read noise1 5 .. 7 e- rms @ 12 MHz (typ.) 6 .. 8 e- rms @ 24 MHz (typ.) Dark current @ sensor temperature 1 e- /pixel/s @ +23 °C dynamic range (intra-scene) 2667 : 1 (68.0 dB) 4000 : 1 (72.0 dB, binning) Shutter type global shutter (snapshot) Sensor cooling passive Dimensions (H x W x L) 39 x 39 x 74 mm
