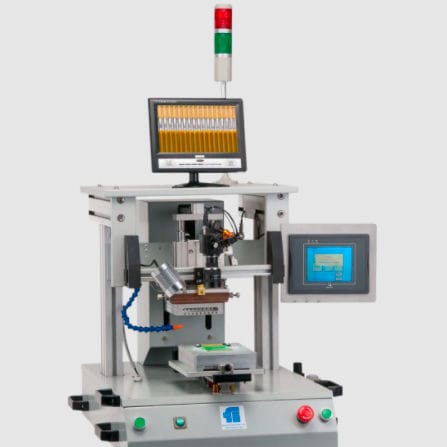

Reflow soldering machine PHM 1-1
automatic

reflow soldering machine
reflow soldering machine
Add to favorites
Compare this product


Characteristics

Technique
reflow
Operating mode
automatic

Description

System Specifications System PHM 1-1 Dimensions 690mm (D) x 520 mm (W) X 800 mm (H) Weight 82 kg Work Table Type Sliding Vacuum 1 Set Air Supply 0.4 to 0.6 MPa Power Consumption AC 110V, 60 Hz, 15 Amp max. Working Area 50mm x 200mm (normal): 250mm x 200mm (maximum) Maximum Thermode Area 400 mm2 Maximum Thermode Length 100mm (normal) Force Range 30 N @ 0.09 MPa to 600 N @ 0.6 MPa Thermode Stroke 50 mm Actuation Type Pneumatic Temperature Range 1° C Interval Idle 0 to 150° C Preheat 0 to 500° C Reflow 0 to 500° C Time Periods 1 Second Interval Preheat 0 to 200 Seconds Reflow 0 to 200 Seconds Heating Rate Control Eight (8) Selections Programmable Heat Profiles Four (4) Internal Memory Thermode Cooling Air For Cooling Thermode Compressed Air 4 to 6 Bar Vacuum Flow Rate 24 L/min Max mun Electrical Power 220 or 110 Vac (Factory Preset) Weight Net - 91kg, Gross 159kg Alignment Method Visual with CCD Camera (Optional) Product Fixture 2 Sets Table Rotating Method Manual (HSM 2-1); Pneumatic (HSM 2-2) Standard Working Area 200mm x 150mm Maximum Working Area 200mm x 260mm
