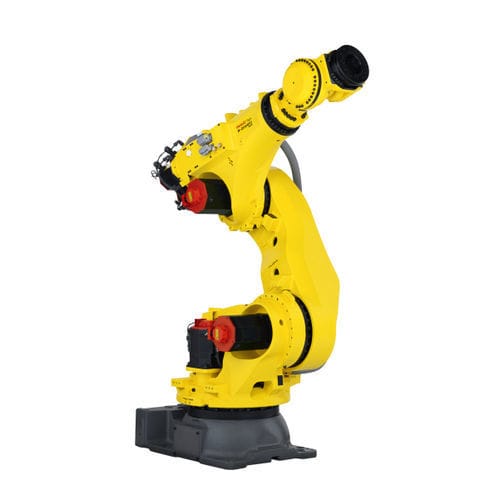

Articulated robot R-2000iC/190S
6-axismachiningmilling

articulated robot
articulated robot
Add to favorites
Compare this product


Characteristics

Type
articulated
Number of axes
6-axis
Function
machining, milling
Mounting
floor-mounted, ceiling-mounted
Protection level
IP67, IP54
Other characteristics
high-precision
Payload

190 kg
(418.878 lb)

Reach

2,040 mm
(80.31 in)

Repeatability

0.03 mm
(0.0012 in)

Operating temperature

Max.: 45 °C
(113 °F)

Min.: 0 °C
(32 °F)

Noise level

71 dB

Weight

1,135 kg
(2,502.2 lb)

Description

This 6-axis articulated arm robot is able to break down barriers in precision applications such as direct component machining. Although the use of robots for applications like milling is not new, most solutions to date centre on workpiece materials such as plastic and resin. However, with the R-2000iC/190S one can mill more challenging materials that include aluminium and wood with good levels of accuracy.
