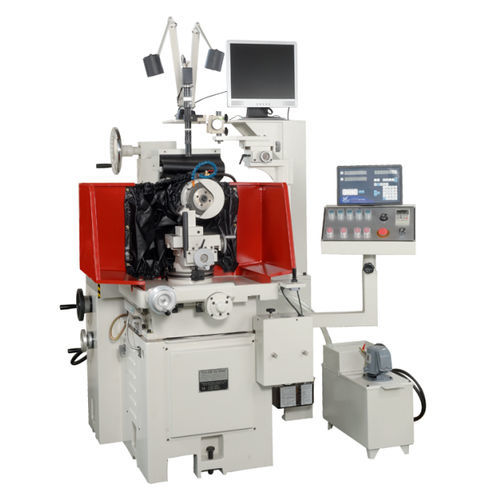

Angular grinding machine FC-200Dtooltilting tableCNC
Add to favorites
Compare this product
Characteristics
- Type
- angular
- Applications
- tool
- Structure
- tilting table
- Control type
- CNC
- Features
- stationary
- Other characteristics
- precision
- Spindle speed
Max.: 3,600 rpm
(22,619 rad.min-1)Min.: 0 rpm
(0 rad.min-1)- Power
2.2 kW
(2.99 hp)- X travel
80 mm
(3.15 in)- Y travel
180 mm
(7.09 in)
Description
FC-200D is a specialized production of PCD, PCBN blade-based precision tool grinder. Regardless of standard knives, non-standard knives, milling knives, inner hole turning tools can achieve completely and reach accurate precision, the blade can also be used again after the ground and reprocessed use.
Grinding process using CCD for focusing, and the work slide rail adopt the Swiss SCHNEEBERGER coordinated with the feed screw and linear scale accurate precision up to 0.001mm. Feeding habits also designed for users to obtain the best grinding effect by controlling the gas pressure.
Catalogs
FC-200D
2 Pages
