Air-suspension trailer FlexMAXself-trackingfor concrete transportlog
Add to favorites
Compare this product
Characteristics
- Type
- air-suspension, self-tracking
- Products carried
- for concrete transport, log, for bridge beam, for long items
- Number of axles
- 4-axle, 3-axle, 7-axle, 2-axle, 6-axle, 5-axle
- Mounting
- towed
- Other characteristics
- modular, for heavy material handling, with hydraulic suspensions
- Payload
Max.: 15,000,000 kg
(33,069,339.33 lb)Min.: 0 kg
(0 lb)
Description
Overview

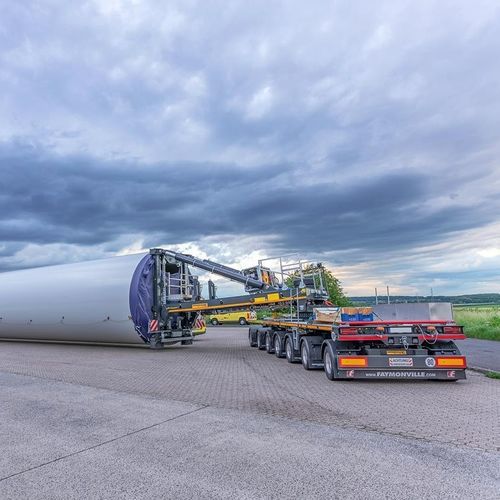

The FlexMAX is a self-steering trailer (dolly trailer) designed for the transport of self-supporting long material. It features an adjustable steering system that autonomously follows the towing vehicle and a chassis concept that adapts to varying lengths and axle configurations.
Key features
Suitable for transporting
Versions
The FlexMAX is available in two main configurations tailored to cargo type:
Areas of activity / Applications
Technical specifications
The FlexMAX is a self-steering trailer (dolly trailer) designed for the transport of self-supporting long material. It features an adjustable steering system that autonomously follows the towing vehicle and a chassis concept that adapts to varying lengths and axle configurations.
Key features
- Adjustable self-steering system enabling autonomous following of the towing vehicle
- Modular length adaptation for very long loads and flexible combinations
- Multiple axle and suspension configurations (2–7 axles; air or hydraulic suspension)
- Compatibility with transport adapters (tower adapters, blade/rotor adapters) and combination with turntable or front dolly
Suitable for transporting
- Self-supporting long components
- Precast concrete elements and concrete beams
- Steel bridge elements and steel beams
- Long timber and logs (weight-optimised lightweight version)
Versions
The FlexMAX is available in two main configurations tailored to cargo type:
- Standard self-steering trailer for long material: built on 2–7 axles; chassis equipped with air suspension or hydraulic suspension. Dollies with pendle axles can be fitted with 19.5" tyres or 17.5" alternatives.
- Weight-optimised version for long trunks/logs: lightweight design on 2 or 3 axles, specifically suited to timber transport.
Areas of activity / Applications
- Construction and infrastructure
- Heavy & industrial transport
- Wind energy and large components
- Forestry and timber transport
- Ship and boat components
- Military and rail applications
Technical specifications
- Model: FlexMAX
- Axles: configurable from 2 up to 7 (depending on version)
- Steering: adjustable self-steering system following the towing vehicle
- Combinations: compatible with turntable on tractor, or 2–4 axle front dolly; suitable for use with fifth wheel setups for extreme loads
- Suspension: air suspension or hydraulic suspension (depending on axle type)
- Tyres (dolly pendle axles): 19.5" or 17.5" options
- Dedicated lightweight variant for logs: 2 or 3 axles
- Compatible with specific transport adapters (tower, blade/rotor adapters)
