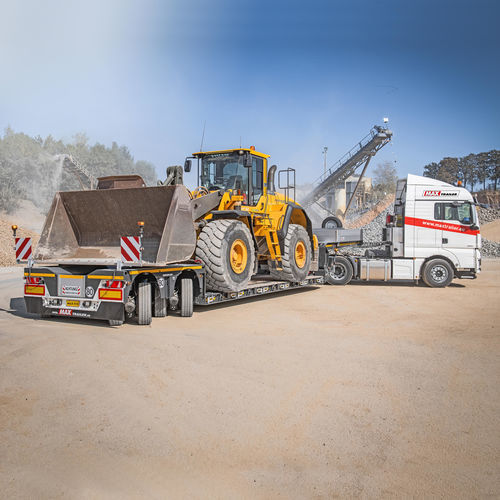

Gooseneck trailer MAX510

low-loaderfor industrial materialsconstruction

MAX510 lowbed trailer for tall loads. Low platform, 2-3 axle bogie, optional pendle-axles, extendable floor

Overview
The MAX510 is a lowbed trailer designed for transporting tall or oversized loads where vertical clearance is limited. It features a low loading platform, a 2-3 axle bogie and is available with pendle-axles as an option. Suspension can be specified as pneumatic or hydraulic, and the loading floor is optionally extendable for added flexibility.

Key product description
The MAX510 enables efficient front-side loading thanks to its removable gooseneck. Models with pendle-axles improve maneuverability and obstacle clearance while the low construction height of the platform allows transport of higher loads within legal height limits. Standard width is 2,540 mm; the 3-axle pendle-axle variant has a width of 2,740 mm.

Main specifications (highlighted)

• 2-3 axles (bogie)
• Pneumatic or hydraulic suspension
• 17.5" tires

Useful features to facilitate daily work
The MAX510 includes a range of practical features focused on fast loading and secure transport:

• Removable gooseneck for easy front-side loading of machinery
• Pendle-axle technology with up to 60° steering angle for tight manoeuvres
• Pendle-axle stroke of 600 mm to pass obstacles
• Low loading platform height for transporting taller equipment
• Excavator trough in the rear bogie to lower excavator arms
• Foldable lashing rings integrated in the loading platform for secure lashing

Available options
The MAX510 can be configured with numerous options to match specific operational needs:

• Galvanised outriggers extendable up to approx. 230 mm per side (hardwood timber used for outriggers)
• Hydraulic multi-coupling from loading platform to gooseneck (instead of screw coupling)
• Ramps to bridge the deck hooks for easier access
• Removable aluminium sideboards on the gooseneck
• Two pairs of screwable container locks to carry 1 x 20' or 1 x 40' containers
• Removable galvanised sliding bolster as additional support point
• Central greasing BEKAMAX for extended wear part life
• Ramps with grip strip covers between lowbed and axle bogie for forestry machinery
• Bolt-on elements for front cross members to bridge gaps when extended (including lowered forestry version)
• Pockets for stakes in the outer frame for additional load securing

Areas of use

• Construction
• Heavy & industrial transport
• Agriculture
• Cranes & equipment
• Forestry & wood

Multimedia
The product page contains embedded videos demonstrating the MAX510 in operation, loading sequences and option overviews.

Technical specifications

• Model: MAX510
• Axles: 2 - 3 (bogie)
• Suspension: Pneumatic or hydraulic
• Tires: 17.5"
• Standard width: 2,540 mm
• Pendle-axle 3-axle width: 2,740 mm
• Removable gooseneck: yes (front loading)
• Loading floor: extendable (optional)
• Pendle-axle features: 60° steering angle, 600 mm stroke
• Excavator trough in rear bogie: yes
• Lashing rings: foldable inwards/outwards on loading platform
• Outriggers: galvanised, extendable ~230 mm per side (hardwood timber)
• Hydraulic multi-coupling: available
• Ramps: available (including ramps with grip strips for forestry)
• Removable sideboards: aluminium on gooseneck (optional)
• Container locks: two pairs screwable (1 x 20' or 1 x 40')
• Removable galvanised sliding bolster: available
• Central greasing system: BEKAMAX (optional)
• Bolt-on bridging elements: available for front cross members
• Pockets for stakes in outer frame: available
