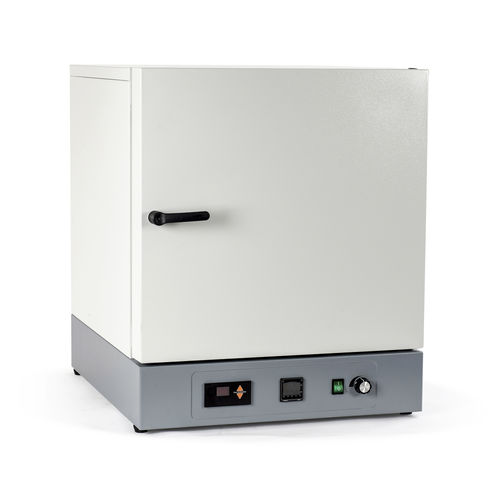

Thermal oven O60/300FV
dryingagingtempering

thermal oven
thermal oven
thermal oven
thermal oven
Add to favorites
Compare this product


Characteristics

Function
thermal, drying, aging, tempering, heat treatment, for accelerated aging tests
Configuration
chamber
Heat source
electric
Atmosphere
forced convection
Other characteristics
compact, laboratory, vertical
Maximum temperature

Min.: 10 °C (50 °F)

Max.: 300 °C (572 °F)

Description

Model: O60/300FV Robust and precise oven for the thermal treatment; drying, heating, thermal testing, aging and similar purposes in forced air-flow environment up to 300°C. The fdm ovens are classic products for the thermal test laboratories, educational institutions, material test in general and industry. The boost air-flow allows a homogeneous temperature distribution, which guarantees a ideal temperature. The fdm ovens are realized with the best components which ensure a durable test. Net Volume: 60 liters Continuous operating temperature: +10°C...+300 °C Maximum temperature: +300°C Working chamber surroundings: air (with hot air fan) Airflow: horizontal Shelves (number)/max: 3/7 Maximum heating- up time (without charge) up to 350°C: 40 min. Temperature stability in working chamber at rated temperature in thermal steady state without charge not more than: ±0.3°C Temperature uniformity in working space at 350°C temperature in thermal steady state without charge not more than: ±2°C Internal chamber dimensions: 380X380X420 (WXDXH) External chamber dimensions: 600X760X720 (WXDXH) Weight: 49 Kg Rated power: 2 kW Rated supply voltage: 230 V Rated frequency: 50 Hz (60 Hz Optional) Number of phases: 1
