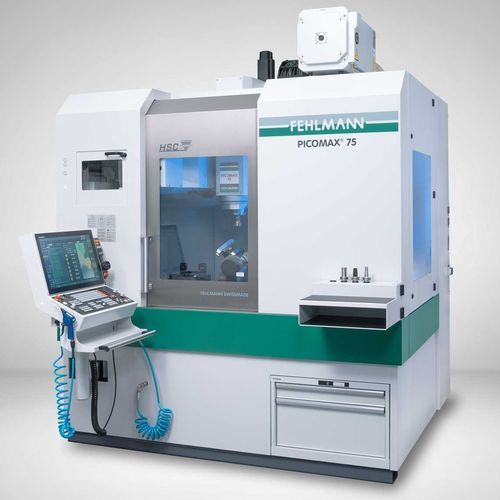

3-axis CNC machining center PICOMAX® 75

5-axisverticalcolumn type

The PICOMAX 75 impresses with high precision, best rigidity and optimum energy efficiency. Tool magazine with loading from front during machining, a compact, space-saving design, as well as Fehlmann-typical, outstanding ergonomics are just a few features of this machine. Machine construction, Z-axis travel, geometry and control unit have been designed for 5-axis machining with FEHLMANN dividing and swiveling units. Up to 5 axes are fully integrated in the control system. This combination ensures best access and precision in 5-, 4- and 3-axis machining. The PICOMAX 75 can also be ordered as a pure 3-axis milling machine, 4th and 5th axes to be retrofitted if required at any time. Machine easily accessible from front, also in combination with the optionally available automatic parts handling. The new stiffness-optimized machine structure and the large-dimensioned linear guideways, as well as precision direct measuring glass scales with compressed air on all axes, guarantee "jig boring machine quality". Fully digital drive technology for maximum dynamics and productivity. The mounting surfaces of the machine’s structural parts are scraped, thereby guaranteeing best possible geometries. Energy-optimized design and power units for saving energy and operating costs Power units switch off automatically when they are not in use Latest generation, fully digital, universal contouring control unit Heidenhain TNC 640 Powerful FEHLMANN motor spindles with high torque Machine can be automated without impairing accessibility Fehlmann Swiss Made – everything from a single source!
