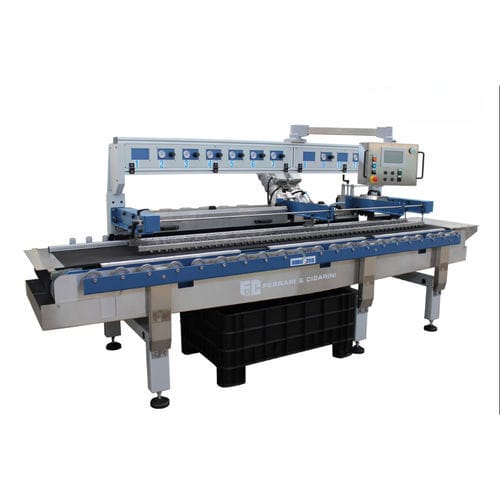

Multi-head polishing machine MLC/12

for marblefor compositesfor granite

Product name
MLC/12 ROBUSTUS is a machine for edge polishing and beveling of marble, granite and agglomerated materials, designed for processing high-thickness workpieces.

Overview
Designed for edge finishing on thick slabs and heavy sections, with configurable head layout to meet different finishing requirements.

Main features

• 1 calibrating spindle
• 6 polishing spindles
• 2 upper spindles at 45° for chamfering
• 2 lower spindles at 45° for chamfering
• 1 spindle for anti-slip / drainer

Spindle and tooling
High-power spindles accept both abrasive and diamond tools. Water injection is delivered from the centre of the tool to improve cooling and cutting efficiency. All spindles are pneumatically controlled and managed by a PLC.

Customization
The number and arrangement of heads can be customized according to the required finish and production needs.

Applications
Edge polishing and beveling of marble, granite and agglomerated materials; suitable for thick workpieces commonly used in countertops, architectural elements and heavy stone components.

Technical specifications

• Model: MLC/12 ROBUSTUS
• Function: edge polishing and beveling machine
• Material types: marble, granite, agglomerates (composite stone)
• Spindle configuration: 1 calibrating spindle; 6 polishing spindles; 2 upper 45° chamfering spindles; 2 lower 45° chamfering spindles; 1 anti-slip/drainer spindle
• Tooling compatibility: abrasive and diamond tools
• Cooling/lubrication: water injection from centre of tool
• Control: pneumatic spindle control, PLC driven
• Customization: configurable number and layout of heads
