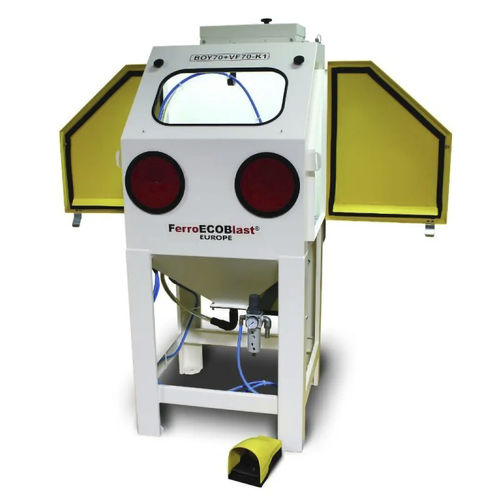

Suction blast cabinet BOY series

manualwith turntablecompact

We developed a line of cabinets, suitable for less demanding users who still expect a reliable and high-quality FerroECOBlast Europe blasting cabinet. As do all of our models, BOY cabinets satisfy all the requirements of safe and ecological surface treatment. Main characteristics of the new line are: Left and right side doors for easy loading Resiliant-to-scratches LED lighting system for exceptional visibility Foot pedal operated blasting Automatic safety switch Tool-free glass change in minutes We offer BOY cabinets in two sizes, equipped with either VF-70 dust collector or a CENTRO recycling unit. Actual space requirement for a complete system depends on the equipment configuration, options and requested work flow. Care also about additional work space for the operator and for maintenance access. BOY 70 + VF-70 Outside dimensions (mm): 800 x 1020 x 1700 Working area (mm): 690 x 690 x 750 Cabinet weight, empty: 151 kg Max. work piece weight: 200 kg Working air pressure: 3 - 6 bar Air consumption at 4 bar*: 0,3 - 0,8 m3/min Blast nozzle diameter: 6 (8, 10) mm Electric connection: 230 V, 50 H BOY 100 + VF-70 Outside dimensions (mm):1100 x 1120 x 1700 Working area (mm): 990 x 790 x 750 Cabinet weight, empty: 180 kg Max. work piece weight: 200 kg Working air pressure: 3 - 6 bar Air consumption at 4 bar*: 0,3 - 0,8 m3/min Blast nozzle diameter: 6 (8, 10) mm
