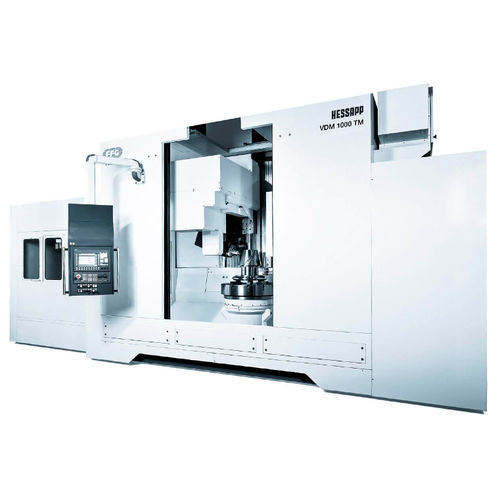

CNC turning center HESSAPP VDM series

verticalheavy-dutyfor aerospace applications

Hessapp VDM vertical turning machines cover a wide machining range in demanding sectors, including machinery/ general engineering, the aviation industry, rolling stock, wind power industry and trucks. Small to large workpieces can be produced using heavy-duty cutting, hard machining and finished machining depending on vertical turning machine model. ADVANTAGES HOW TO BENEFIT FROM HESSAP VDM VERTICAL TURNING MACHINES ENHANCED PERFORMANCE Hessapp VDM vertical turning machines enable the machining of workpieces with diameters from 600 to 1,950 mm, in the case of swing diameters from 680 to 1,950 mm, and workpiece heights (with clamping devices) from 600 to 1,200 mm. Drives with up to 170 kW output and up to 54,000 Nm torque ensure maximum cutting performance. TOP PRECISION The machine bed made of mineral casting and FEM-calculated column structure enable ideal strength and stability without additional base anchoring. Linear roller guides and a linear measuring system in all axes provide the ideal basis for top precision. MAXIMUM FLEXIBILITY Hessapp VDM vertical turning machines can be modularly configured for each turning task. This includes for instance using variable chip conveyors and cooling systems (high pressure), various tools and tool carrier systems and various extension levels up to a double-table turning machine. IDEAL ERGONOMICS Hessapp VDM vertical turning machines offer great accessibility to workpieces and tools, easy access for efficient maintenance and ideal chip removal at an inclination of 45°.
