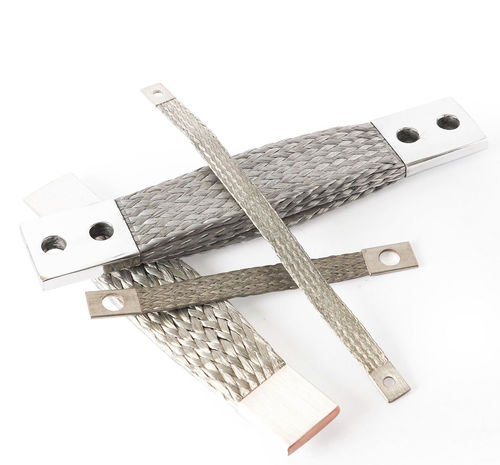

Flat braided shunt VBB series

copper

Braided Flexible Shunts High elastic braided flexibles are composed of pressing braided copper wires in copper pipes under strong press, where the braided copper wires are formed according to the specified cross section. The elasticity of flexibles depend on the diameter of wire that is used during production, number of the braided layers, form and type of the braid. These flexibles are suitable for use in outdoor applications particularly. Application Areas of Braided Flexible Shunts; In switch-gear devices and installation of apparatus As earthing bands As secondary cables in resistance welding In electrical powered vehicles In electric furnace construction In coating stations In rail-cars and in railways As battery connectors In machine constructions and in mechanical devices In mechanical conveying and handling Technical / Features; Raw Materials of Braided Flexible Shunts: Cu ETP tubes and wires acc.to EN 13601 (red or tin plated) Thickness of Copper Wires: 0.05mm - 0.50mm These flexibles can also be produced from stainless steell or aluminium raw material. Coating of Contact Areas: can be silver, tin or nickel plated upon specific thickness request lsolation: can be isolated with heat shrinkable tubes or special PVC compound
