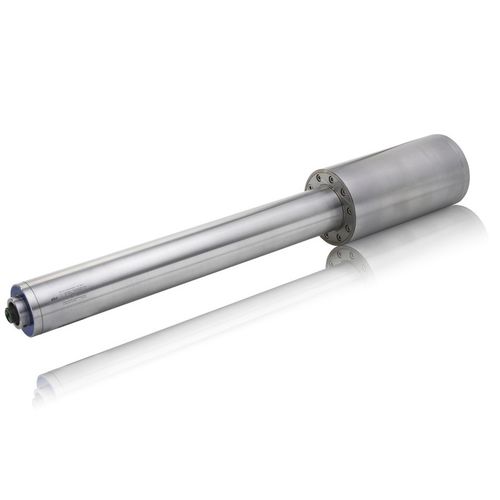

Grinding motor spindle M34-FAVY seriesAC motor
Add to favorites
Compare this product
Characteristics
- Function
- grinding
- Drive system
- AC motor
- Rotational speed
Max.: 20,000 rpm
(125,663.7061 rad.min-1)Min.: 15,000 rpm
(94,247.7796 rad.min-1)- Diameter
120 mm
(4.7 in)
Description
High–performance grinding spindles with a watercooled asynchronous motor
External taper on working side
Pre–tensioning of the precision bearing groups using a spring system that does not have to be readjusted
Long-lasting grease lubrication
Non–wearing labyrinth seal system with air seal
Spindles are completely dynamically balanced
Taper true running <= 0.002 mm
Drive via frequency converter
Diameter to length ratio of up to 1:20 possible
Catalogs
No catalogs are available for this product.
See all of FISCHER AG - Präzisionsspindeln‘s catalogsExhibitions
Meet this supplier at the following exhibition(s):
IMTS 2026
14-19 Sep 2026 Chicago (USA - Illinois) Hall North Level 3 - Stand 237470
Other FISCHER AG - Präzisionsspindeln products
FISCHER Motorspindles for manual tool change
