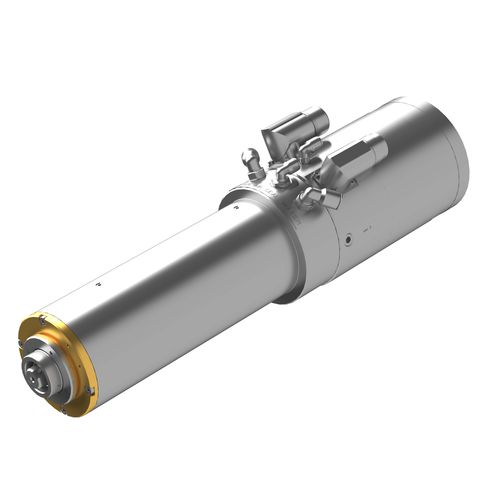

Milling motor spindle MFW-825
AC motorwith automatic tool changerwith pneumatic clamping

Milling motor spindle - MFW-825 - FISCHER AG - Präzisionsspindeln - AC motor / with automatic tool changer / with pneumatic clamping

Add to favorites

Compare this product

Characteristics

Function

for milling

Drive system

AC motor

Other characteristics

with automatic tool changer, with pneumatic clamping

Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 25,000 rpm
(157,079.6327 rad.min-1)

Diameter

80 mm
(3.1 in)

Description

MFW-825 TECHNICAL DATA Diameter - 80 mm Interface - HSK-E32 Spindle Speed Max - 25'000 rev/min Weight - 11.2 kg MOTOR RATING DATA Motor Type - Async Star Nominal Speed - 25'000 rev/min Power S1 / Power S6 20% - 7.50 kW / 18.58 kW Torque S1 / Torque S6 20% - 4.00 Nm / 9.91 Nm SPINDLE COOLING Spindle Shaft Cooling: No PROCESS COOLING Cooling Rotary Union: No BEARING LUBRICATION Bearing Lubrication: Grease TOOL CLAMPING SYSTEM Tool Clamping System: Pneumatic Double-Action SENSORS Speed Control: Vector Control Dilatation Sensor: Optional Acceleration Sensor: Optional Tool Detection: Optional Bearing Temperature Sensor: Optional
