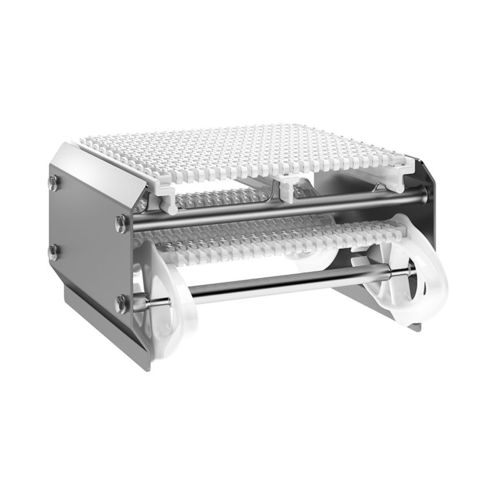

Modular belt conveyor WL X series
for the food industryfor dairy productshorizontal

modular belt conveyor
modular belt conveyor
modular belt conveyor
modular belt conveyor
modular belt conveyor
modular belt conveyor
modular belt conveyor
modular belt conveyor
Add to favorites
Compare this product

Characteristics

Technology
modular belt
Sector
for the food industry
Product transported
for dairy products
Other characteristics
horizontal, stainless steel
Maximum load

300 kg (661.387 lb)

Speed

40,000 mm/min (26.25 in/s)

Description

The modular wide belt conveyors with stainless steel beam are designed to fit into demanding primary and secondary packaging applications. It addresses important aspects of today's packing processes: easy to clean, smooth handling of products, safe for operators, robust design, long life, and easy to maintain with a low cost of ownership. The modular and standardized design ensures fast set up, and facilitates rapid future extensions and changes. Belt conveyor range The conveyor belt consists of plastic hinged links connected by plastic rods. Five standard widths of belt can be delivered: 152, 203, 304, 456, and 608 mm. Plain bends offered up to 90°. The assembled belt forms a wide, flat, and tight conveyor surface. The belt has a minimal number of seams and open hinges that are easy to clean. Conveyor product lines: WL222X, WL273X, WL374X, WL526X, WL678X Features Belts with polyamide pins are available for dry or semi-wet applications. In constant wet applications, belts with acetal pins must be used. This is due to the fact that polyamide pins will absorb water and swell in wet applications, and acetal pins will squeak in dry environments. Easy cleaning The top belt can be lifted up and the outer slide rails can be folded back for easy cleaning. For hygiene reasons, the conveyor system is based on an easy-to-clean, free hanging return belt.
