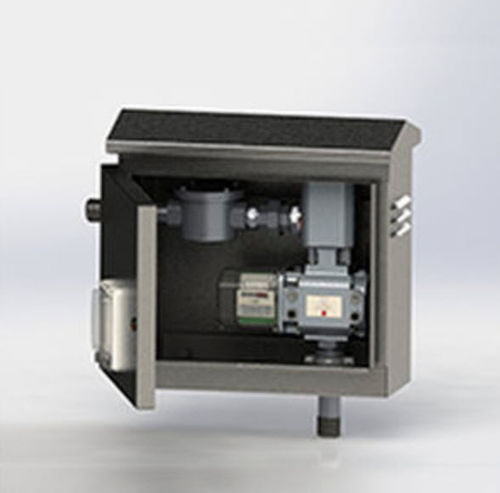

Variable-area flow meter G series

for gasverticalhorizontal

The product’s mechanical performance is stable. Range ratio can reach 1:100. Initial flow rate is 0.01m³/h. Intergrated mechanical counting, temperature and pressure correction, remote transmission, recharge, valve control into one assembly. Integrated circuit and low efficiency design. The battary life can last more than 3 years, and the memery can store data for 27 months ( a set of data per hour). There are two ways to install flowmeters: vertical installation and horizontal installation (Fig. 4, Fig. 5). Vertical installation is recommended. When the flowmeter is installed vertically, the inlet end of the medium should be above and the air flow should flow from top to bottom, so that the rotor has self-cleaning ability to the dirt. When installed horizontally, the axis of the inlet and outlet end of the flowmeter should not be lower than the axis of the pipeline, so as to avoid the dirty impurities in the medium remaining in the flowmeter's flow detection chamber. Normal speed. When installing, the filter must be arranged upstream of the flowmeter to improve the cleanliness of the medium. (the filter is supplied by our company).
