water pump / electric / centrifugal / industrial

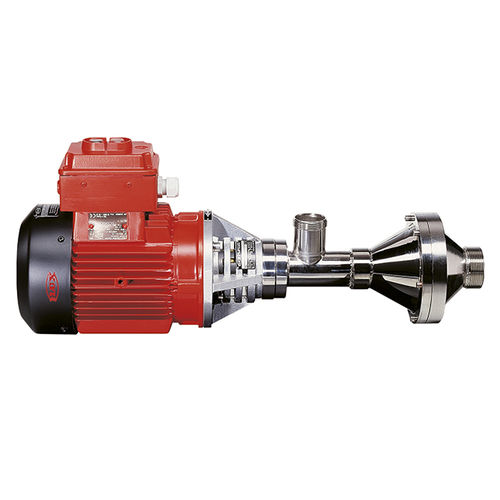

F 620 TR

{{requestButtons}}

Characteristics

  • Media:

    water

  • Operation:

    electric

  • Type:

    centrifugal

  • Domain:

    industrial

  • Other characteristics:

    dry, mechanical, seal, discharge, conveying, container

  • Flow:

    383 l/min (101.1779 us gal/min)

  • Power:

    Min.: 0.75 kW (1.02 hp)

    Max.: 4 kW (5.44 hp)

Description

For pumping and conveying of large quantities of heavy flammable liquids out of containers, tanks, open containers etc. The pump is used either horizontally mounted onto a base plate or fixed vertically.Technical data:
Flow rate: max. 383 l/min1
Delivery head: max. 12 mwc1
Viscosity: min. 1 mPas - max. 2500 mPas1
Diameter pump housing: max. 30 mm2
Diameter mounting flanges: max. 185 mm2
Materials outer tube: Stainless steel
Media / Fluids: Acids, Alkalis, , Fuels
Seal: mechanical seal
Container: Tanks > 1000 liters
For pumping large quantities of heavy flammable liquids
With console for dry installation
With threaded connection on inlet and discharge side
Consisting of an inner and outer tube as well as a drive shaft mounted in the inner tube
Shaft seal with mechanical sealsin ceramic oxide, O-rings made of FKM
Depending on the model, available with threaded or flanged connections at suction and discharge side
