Paint pump
for adhesivesfor inkfor juice

paint pump
paint pump
Add to favorites
Compare this product

Characteristics

Media
paint, for adhesives, for ink, for juice, oil, grease
Operation
electric
Priming
semi-submersible
Technology
progressive cavity
Domain
industrial
Flow

Max.: 50 l/min (13.2086 us gal/min)

Min.: 0 l/min (0 us gal/min)

Description

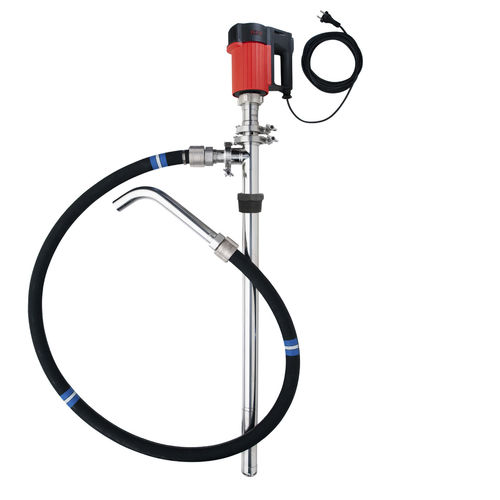

Pre-assembled eccentric worm-drive pump kit with planetary gear for industrial applications to pump thin to medium viscous media up to 25.000 mPas out of 200-l drums and IBCs. The positive displacement pump works smoothly at a constant pressure and ensures a gentle, pulsation-free pumping. Comprising Eccentric worm-drive pump F 550 GS in 1000 or 1200 mm, Commutator motor F 457, Stator housing, Stator, Hose, Discharge spout, Hose connection and compression gland. For industrial applications up to 25.000 mPas with eccentric worm-drive pump. Technical data: - Flow rate: max. 50 l/min - Delivery head: max. 80 mwc - Viscosity: min. 1 mPas - max. 25000 mPas - Outer tube diameter: max. 50 mm - Immersion length: 1000, 1200 - Materials outer tube: Stainless steel - Media / Fluids: Viscous media - Seal: open mechanical seal - Container: 200 l drums, 1000 l IBC Product attributes: - Positive displacement pump - Smooth pumping and with very little turbulences - Low pulsation in relation to the flow - Pump / shaft / worm can be dismantled Benefits: - Wide range of viscosity can be covered - Optimal for viscous self-flowing media - Also suitable for shear-sensitive media - Transfer at constant pressure - Can be adjusted individually on the media's characteristics - Pump can be dismantled - Efficient use of medium - High efficiency
