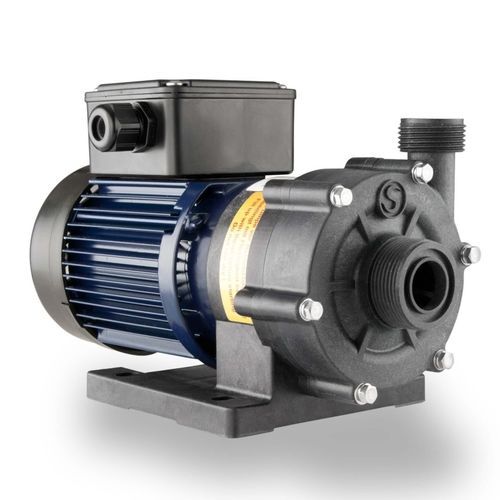

Centrifugal pump MA BG1for chemicalsmagnetic-drivestationary
Add to favorites
Compare this product
Characteristics
- Technology
- centrifugal
- Fluid
- for chemicals
- Operation
- magnetic-drive
- Mobility
- stationary
- Domain
- industrial
- Applications
- discharge
- Material
- PP
- Voltage
- 400 V, 380 V
- Protection level
- IP55
- Other characteristics
- single-stage
- Flow
50 l/min, 70 l/min
(13.2086 us gal/min, 18.49204 us gal/min)- Pressure
2 bar
(29.008 psi)- Head
5 m, 6 m
(16'04" , 19'08" )- Power
0.12 kW
(0.16 hp)- Fluid temperature
70 °C, 80 °C
(158 °F, 176 °F)- Length
279 mm
(11 in)- Width
130 mm
(5.12 in)- Height
167 mm
(6.57 in)- Weight
5.6 kg
(12.35 lb)
Description
without shaft seal
streamlined housing made of PP or ETFE
discharge head of MA pump type 1 is up to 6 mWS
horizontal single-stage monoblock design
