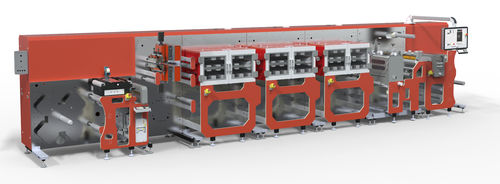

Automatic coating machine moduloR2R

roll-to-roll

The FOM moduloR2R is a highly capable, modular roll-to-roll pilot line platform. The base model consists of unwind, rewind, oven and slot die stations for simple pilot-scale thin film production. This can be easily customized and optimized for a given coating process through the addition of a wide variety of machine modules and process stations. The FOM moduloR2R makes it simple to design the perfect production line for a particular process, representing an ideal first step from R&D to full-scale fabrication. • Modular sub-units (each W: 0,8 m, D: 1.1 m, H: 1,6 m, typically 5+ • 13”/22” (350/650 mm) industry standard web width • Pre-treatment with web cleaning. Contact or contactless. • Pre-treatment with either Corona or plasma unit. • Flexographic and gravur printing stations, servo driven with register control and slow-run function • Mutiple Full-width or stripe-pattern Slot Die coating head with automatic registration system • Vertical or horizontal double pass hot air and IR combination oven (2 meter drying in 1 meter oven) Up to 9m drying tunnel on 2 meter footprint. DESIGNED FOR EXPERIMENTAL RESEARCH The FOM moduloR2C addresses the challenges associated with roll-to roll equipment in R&D environments. Industrial roll-to-roll equipment often lacks the necessary freedom to experiment, adapt and data collect as is common in research. EASY OPERATION To accommodate the flow of the research process the FOM moduloR2C provides a flexible system that allows facile experimental set-up, data collection and operation.
