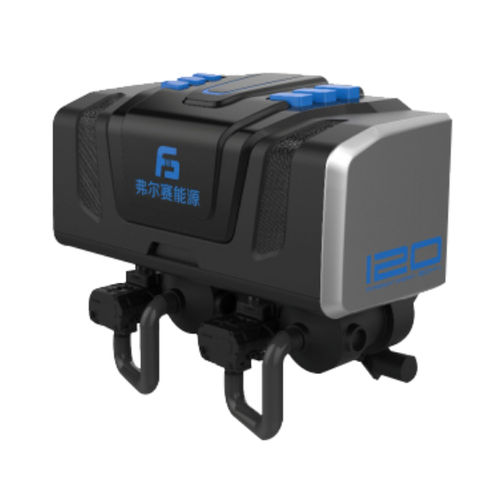

Hydrogen fuel cell module FS-FCE-1200with proton-exchange membranewater-cooled
Add to favorites
Compare this product
Characteristics
- Technology
- hydrogen, with proton-exchange membrane
- Cooling system
- water-cooled
- Power
120 kW
(163 hp)- Voltage
580 V
- Weight
180 kg
(396.83 lb)- Width
700 mm
(27.56 in)- Height
860 mm
(33.86 in)- Operating temperature
Max.: 50 °C
(122 °F)Min.: -20 °C
(-4 °F)
Description
high-power and multi-module platformindependently developed by Foresight, with modular and compact design based on multi-channel balanced intake technology, independentoperation of each module.With the help of multi-module dynamic energy optimization &scheduling technology, the platform can work in Limp Mode. It is suitable for heavy duty commercial vehicles.
Type - Proton Exchange Membrane Fuel Cell
Fuel type - Hydrogen/air
DC/DC output voltage - 580VDC
Electrical efficiency - ≥47%
Ambient temperature - -20℃~50℃
Weight - 180kg
Start-up time - ＜1minute
Water cooling - ＞10000 hours
Insulation resistance - ＞100Ω/V
Noise - ≤75dB
