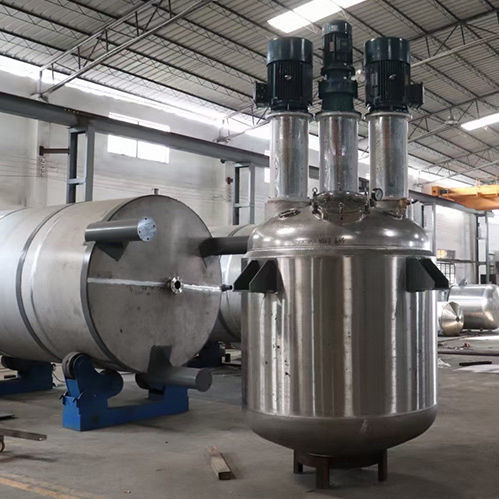

Battery material production line

1. Raw Material Storage and Delivery System Function • Store and deliver raw materials such as positive and negative electronde materials, conductive agents, binders and solvents. • Ensure that the raw materials are delivered to the mixing equipment in proportion. Equipment • Storage tanks, hoppers • Screw conveyors, vacuum conveyors 2. Premixing System Function • Premix the positive and negative electrode materials, conductive agents, etc. to ensure initial uniform dispersion. • Reduce agglomeration during subsequent mixing. Equipment • High speed disperser • High shear mixer high speed dispersion reactor 3. Main Mixing System Function •Efficient and uniform mixing to ensure the stability and consistency of the slurry. • Control the temperature, humidity and vacuum degree during the mixing process to avoid oxidation and contamination of thematerials. Equipment • Double planetary mixer (with vacuum, heating/cooling function) • High speed disperser •Powerful disperser 4. Mixing Process Control System Function • Real-time monitoring and control of mixing parameters such as speed, temperature, vacuum degree, etc. • Ensure the stability and repeatability of the mixing process. Equipment • PLC control system • Sensor (temperature, pressure, humidity, etc.) PLC 5. Discharging and Conveying System Function • Convey the uniformly mixed slurry from the main mixing equipment to the next process. • Ensure that the discharging process is pollution-free and loss-free. Equipment • Screw pump • Vacuum conveying system • Pipeline and valve 6. Filtration and Degassing System Function • Filter the slurry to remove large particles and impurities.
