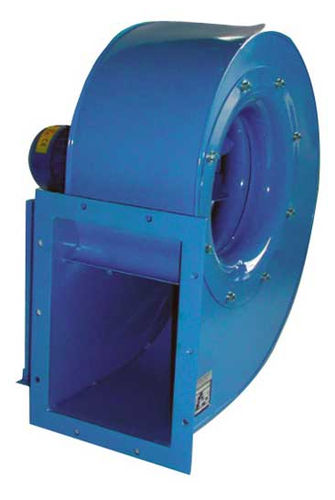

Centrifugal fan CIREX
ventilationexplosion-proofindustrial

centrifugal fan
centrifugal fan
Add to favorites
Compare this product


Characteristics

Configuration
centrifugal
Function
ventilation
Other characteristics
explosion-proof, industrial
Air flow

Min.: 200 m³/h
(7,062.933 ft³/h)

Max.: 25,000 m³/h
(882,866.668 ft³/h)

Description

Use in explosive atmospheres (zone 1 and 2 ATEX). Complies to the european directive ATEX 94/9/CE (order N° 90-1010 of 19/11/1996). Complies to security and health demands needed to be able to be sold in the EU. Range consists of 36 models. Flow: 200 m3/h to 25 000 m3/h. Available pressure up to 1500Pa. Flow up to 90 000 m3/h, consult us. Motor : certified ATEX by a notified organism, three-phase 230/400 V - 50 Hz, IP 55. Options: Construction in stainless steel 304. Version with single-phase motor 230 V, 1 or 2 speeds. Version for explosive dusty atmospheres (zone 21 and 22 ATEX). Temperature of air flow between - 20° C and 80° C. This fan is not suited for the transport of dust.
