Universal motor
AC

Universal motor - FRIWO Gerätebau GmbH - AC
Universal motor - FRIWO Gerätebau GmbH - AC
Universal motor - FRIWO Gerätebau GmbH - AC - image - 2
Universal motor - FRIWO Gerätebau GmbH - AC - image - 3
Add to favorites
Compare this product

Characteristics

Type
universal, AC
Power

Min.: 0 kW
(0 hp)

5 kW
(6.8 hp)

Max.: 6.3 kW
(8.57 hp)

Torque

26 Nm
(19.176616 ft.lb)

Rotational speed

Min.: 0 rpm
(0 rad.min-1)

Max.: 5,000 rpm
(31,415.9265 rad.min-1)

Diameter

201 mm
(7.91 in)

Description

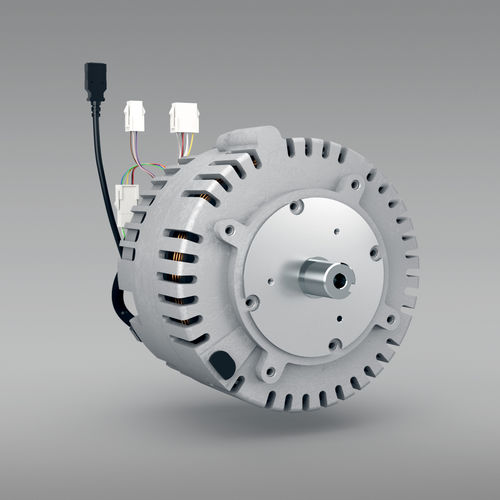

Motenergy electric motor with a mechanical peak power of over 6.2kW. The motor delivers a continuous power of 5kW the drive for exciting applications. It can be controlled either via accelerator pedal, brake or via CAN bus. Additional information •Input power (el): 9kW (12PS) @ 48V •Output power (mech): 6.3kW (8.5PS) •Torque: 26Nm •Efficiency (average): 83% @ 3500/min, 4.75kW Out, 13Nm •Speed: 5000/min •Recuperation: Yes •Reverse gear: Yes •CAN-Bus: Yes •Smartphone Connectivity: Yes •Diagnostic interface: USB, CAN •Weight (in kg): 10.9 •Diameter: 201mm •Length: 146.5mm (Motor) 52.0mm (Controller) mm •Shaft diameter: 24mm
