Greater performance for high demands
The KIT Plus range of wheel washing systems consists of a wide selection of mobile and stationary standard equipment for high-frequency applications.
The modern drive-through systems are based on the findings from over 30 years experience with wheel washing systems, and alongside the benefits of the classic MobyDick, also offer an attractive price-to-performance ratio. All ConLine PLUS systems are quick and easy to install and require only minimal maintenance.

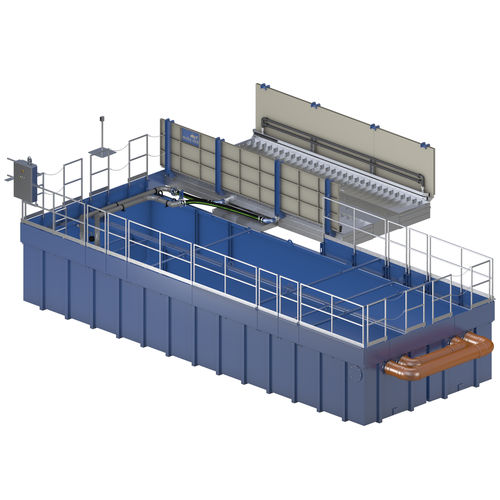

MobyDick Conline KIT Plus 600 B-100P
Spécifications*
.ength of wash unit 600cm
Clear drive through width of the wash unit (lane) 280cm
Maximum axle load 15t
Reight of splash protection side walls 136cm
'Jozzies (Core diameter min. 7 mm) 226Pcs.
'Jozzie bars per side 2Pcs.
Recycling tank volume 100.0m*
Usable volume of operating water 70,0m*
Sédimentation area of the recycling tank 51,0m2
Discharge height of scraper conveyor above ground-cm
Maximum pump performance 7,5m’/min
Connected electrical load of the entire System 16,8kW
Sound émission <75dB
