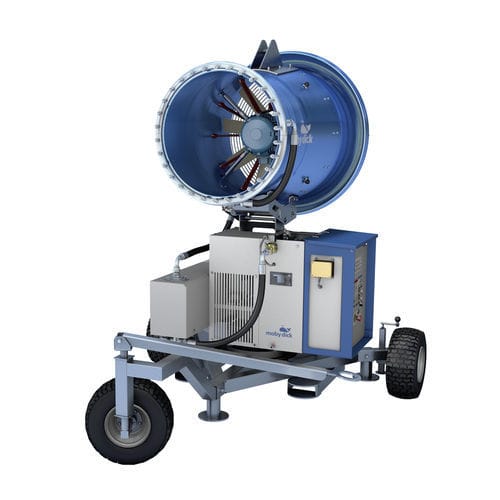

The New Generation models have a range of functions that are one-of-a-kind. As a result, throw distance, electricity consumption, noise emissions and water volume used for the 3060 and 3090 models can always be accurately adjusted to operating conditions. The high-performance cone that has been developed with Zurich University of Applied Sciences (ZHAW) ensures the highest efficiency. The water can either be spread with the nozzle ring (large surface areas) or the nozzle head (concentrated). Therefore, droplet throw can be adjusted to the respective operating conditions. It‘s the best solution for demanding use with throw distances between 10 and 90 metres.
Length x width x height 1.00 x 1.00 x 1.60 Meter
Weight 225 Kg
Throw (without wind) 20-30 Meter
Number of nozzles 15 Pcs.
Air flow per hour 12’000 Cubic
Water flow per hour 400 Liter
Power connection (3F + N + T) 16 A
Water connection (GEKA) 1/2 Inch
Noise emissions at a distance of 5 metres from the unit < 70 dB
Lifting Hook ✔
Water Shut-off Valve ✔
Electric Vertical Movement X
Wheel Set ✔
Remote Control (Option) ✔
Additional Support Foot X
Rear Support Feet X
Splitted Nozzle Ring X
Aerodynamic High Performance Cone X
Aerodynamic Inside Covering X
Central Water Inlet with Rotary Coupling X
Central Nozzle Head X
Adjustable Throw (frequency converter) X
