Diesel generator set technical data

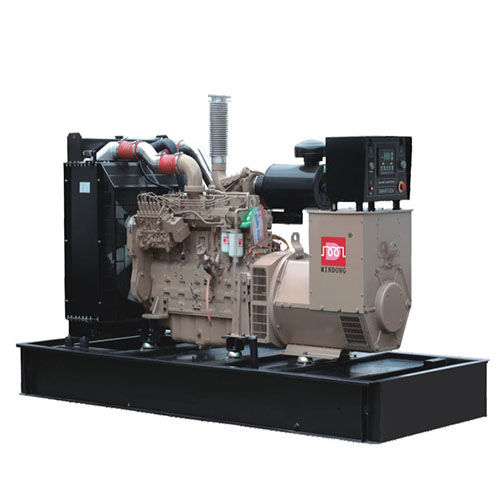

1. Generator Set
- Integrated structure, base frame with high-strength steel, Genset can be connected with full suspension suspension absorber design,good damping effect and small shake.
- Diesel: choice of DCEC Cummins or Chong Fa Cummins diesel, 24V DC electric starting, with closed tank water cysling and fan cooling.
- Generator: choice of MINDONG brand TFW3 generator or STAMFORD generator, AVR brushless automatic voltage regulator, class H insulation, protection class according to IP21/22 standard.
- Control panel using the big screen liquid crystal display (LCO) for generator sets control module, have automatic start, data acquisition and display, fault alarm and protection functions, configuration of electric monitoring instrument and diesel operation instrument,
- Genset with MCCB circuit breakers, with short circuit, overload protection function.
- Genset output power to meet the following environmental conditions: Altitude:≤lOOOm Ambient temperature :≤40°C。
2. Genset with 24V high-performance lead-acid batteries and charging generator, can be six consecutive start; and equipped with electricity float charger to ensure adequate battery power.
3. Genset equipped with the base daily tank, to meet the unit more than 6 hours of continuous full load.
4. Genset attach muffler, built-in shock absorbers, corrugated absorber and simple installation materials.
5. Genset emission standards to meet Euro I emission standards
