- Hydrogen fuel cell
- FUJIAN YANAN POWER GROUP

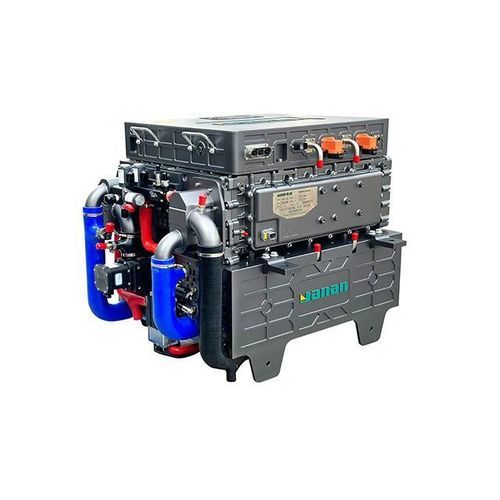

Fuel cell with proton-exchange membrane YNFS seriesPEMhydrogenin-vehicle
Add to favorites
Compare this product
Characteristics
- Technology
- hydrogen, with proton-exchange membrane, PEM
- Mounting
- in-vehicle
- Applications
- for the automotive industry, for vehicles
- Power
32 kW, 62 kW, 92 kW, 120 kW
(44 hp, 84 hp, 125 hp, 163 hp)- Voltage
Max.: 750 V
Min.: 450 V
- Weight
105 kg, 186 kg, 217 kg, 225 kg
(231.49 lb, 410.06 lb, 478.4 lb, 496.04 lb)- Width
550 mm, 750 mm, 883 mm, 915 mm
(21.65 in, 29.53 in, 34.76 in, 36.02 in)- Height
400 mm, 580 mm, 710 mm, 729 mm
(15.75 in, 22.83 in, 27.95 in, 28.7 in)- Depth
674 mm, 750 mm, 812 mm, 915 mm
(26.5 in, 29.5 in, 32 in, 36 in)- Fuel pressure
Max.: 2.7 bar
(39.2 psi)Min.: 1.9 bar
(27.6 psi)- Operating temperature
Max.: 60 °C
(140 °F)Min.: -40 °C
(-40 °F)
Description
Product overview
The YNFS series automotive hydrogen fuel cell modules are intended for vehicle traction applications. Units integrate DC/DC conversion, support CAN 2.0B communication and meet IP67 protection. Available power options cover a 32-120 kW range to facilitate vehicle integration.
Available models
Specifications (per model)
YNFS-30A
Rated Power (kW): 32
Voltage Range (VDC): 450~750
Cold Start Temp (℃): -25
Storage Temp (℃): -35~60
Operating Temp (℃): -25~45
Inlet Pressure（barg）: 2.0/1.9 (H2/Air)
Ingress Protection: IP67
Communication Interface: CAN 2.0B
Weight (kg): 105
Dimensions(ContainDC/DC) (mm): 812×550×400
YNFS-60A
Rated Power (kW): 62
Voltage Range (VDC): 450~750
Cold Start Temp (℃): -30
Storage Temp (℃): -40~60
Operating Temp (℃): -30~45
Inlet Pressure（barg）: 2.3/2.1 (H2/Air)
Ingress Protection: IP67
Communication Interface: CAN 2.0B
Weight (kg): 186
Dimensions(ContainDC/DC) (mm): 750×598×580
YNFS-90A
Rated Power (kW): 92
Voltage Range (VDC): 450~750
Cold Start Temp (℃): -30
Storage Temp (℃): -40~60
Operating Temp (℃): -30~45
Inlet Pressure（barg）: 2.7/2.5 (H2/Air)
Ingress Protection: IP67
Communication Interface: CAN 2.0B
Weight (kg): 217
Dimensions(ContainDC/DC) (mm): 915×674×729
YNFS-120A
Rated Power (kW): 120
Voltage Range (VDC): 450~750
Cold Start Temp (℃): -30
Storage Temp (℃): -40~60
Operating Temp (℃): -30~45
Inlet Pressure（barg）: 2.7/2.5 (H2/Air)
Ingress Protection: IP67
Communication Interface: CAN 2.0B
Weight (kg): 225
Dimensions(ContainDC/DC) (mm): 883×616×710
Key technical data
The YNFS series automotive hydrogen fuel cell modules are intended for vehicle traction applications. Units integrate DC/DC conversion, support CAN 2.0B communication and meet IP67 protection. Available power options cover a 32-120 kW range to facilitate vehicle integration.
Available models
- YNFS-30A
- YNFS-60A
- YNFS-90A
- YNFS-120A
Specifications (per model)
YNFS-30A
Rated Power (kW): 32
Voltage Range (VDC): 450~750
Cold Start Temp (℃): -25
Storage Temp (℃): -35~60
Operating Temp (℃): -25~45
Inlet Pressure（barg）: 2.0/1.9 (H2/Air)
Ingress Protection: IP67
Communication Interface: CAN 2.0B
Weight (kg): 105
Dimensions(ContainDC/DC) (mm): 812×550×400
YNFS-60A
Rated Power (kW): 62
Voltage Range (VDC): 450~750
Cold Start Temp (℃): -30
Storage Temp (℃): -40~60
Operating Temp (℃): -30~45
Inlet Pressure（barg）: 2.3/2.1 (H2/Air)
Ingress Protection: IP67
Communication Interface: CAN 2.0B
Weight (kg): 186
Dimensions(ContainDC/DC) (mm): 750×598×580
YNFS-90A
Rated Power (kW): 92
Voltage Range (VDC): 450~750
Cold Start Temp (℃): -30
Storage Temp (℃): -40~60
Operating Temp (℃): -30~45
Inlet Pressure（barg）: 2.7/2.5 (H2/Air)
Ingress Protection: IP67
Communication Interface: CAN 2.0B
Weight (kg): 217
Dimensions(ContainDC/DC) (mm): 915×674×729
YNFS-120A
Rated Power (kW): 120
Voltage Range (VDC): 450~750
Cold Start Temp (℃): -30
Storage Temp (℃): -40~60
Operating Temp (℃): -30~45
Inlet Pressure（barg）: 2.7/2.5 (H2/Air)
Ingress Protection: IP67
Communication Interface: CAN 2.0B
Weight (kg): 225
Dimensions(ContainDC/DC) (mm): 883×616×710
Key technical data
- Rated Power (kW): 32 / 62 / 92 / 120
- Voltage Range (VDC): 450~750
- Cold Start Temp (℃): -25 (YNFS-30A) ; -30 (other models)
- Storage Temp (℃): -35~60 (YNFS-30A) ; -40~60 (other models)
- Operating Temp (℃): -25~45 (YNFS-30A) ; -30~45 (other models)
- Inlet Pressure (barg): 2.0/1.9 (YNFS-30A) ; 2.3/2.1 (YNFS-60A) ; 2.7/2.5 (YNFS-90A & YNFS-120A)
- Ingress Protection: IP67
- Communication Interface: CAN 2.0B
- Weight (kg): 105 / 186 / 217 / 225
- Dimensions (mm): 812×550×400 / 750×598×580 / 915×674×729 / 883×616×710
