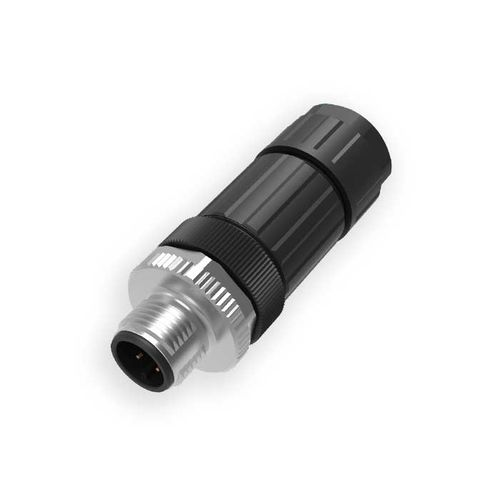

M8 connector 63F441electrical power supplystraightmale
Add to favorites
Compare this product
Characteristics
- Type
- electrical power supply
- Shape
- straight
- Connection type
- male, push-in
- Size
- M8
- Electrical characteristics
- 4-pole
- Domain
- industrial
- Protection class
- IP67
- Norms
- CAT 5
- Other characteristics
- IEC
- Voltage
60 V
- Operating temperature
Min.: -25 °C
(-13 °F)Max.: 85 °C
(185 °F)
Description
name: M8 A-code 4pin male push-in connector
Max. supply voltage AC UB :60 V
Max. supply voltage DC UB 60 V
Cable:User-fabricated
Number of conductors x conductor cross-section:4×0.14...0.75 mm²
Cable diameter:Ø 3.5...7 m
Connection method: Push-in terminal
Degree of protection as per IEC 60529:IP 67
Ambient temperature Ta -25...+85 °C
