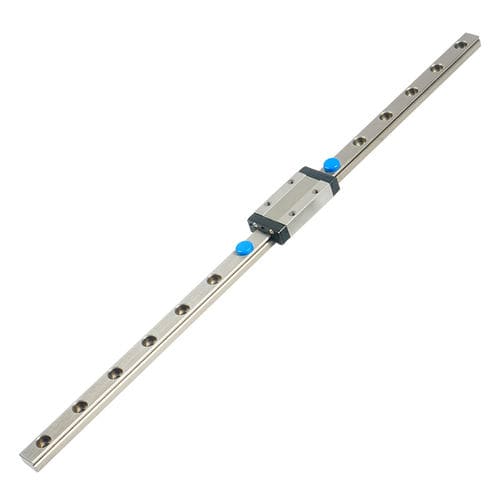

Ball screw linear guide FMG
15 mm12 mm5 mm

Ball screw linear guide - FMG - FUYU Technology - 15 mm / 12 mm / 5 mm
Ball screw linear guide - FMG - FUYU Technology - 15 mm / 12 mm / 5 mm
Ball screw linear guide - FMG - FUYU Technology - 15 mm / 12 mm / 5 mm - image - 2
Ball screw linear guide - FMG - FUYU Technology - 15 mm / 12 mm / 5 mm - image - 3
Ball screw linear guide - FMG - FUYU Technology - 15 mm / 12 mm / 5 mm - image - 4
Add to favorites
Compare this product

fo_shop_gate_exact_title

Go to the FUYU Technology website for more information

Characteristics

Technology
ball screw
Range
15 mm, 7 mm, 5 mm, 12 mm, 9 mm
Other characteristics
stainless steel
Rail length

Min.: 50 mm
(1.97 in)

Max.: 2,000 mm
(78.74 in)

Rail width

Min.: 5 mm
(0.2 in)

Max.: 42 mm
(1.65 in)

Load

Min.: 0.54 kN

Max.: 8.93 kN

Precision

Min.: 2 µm

Max.: 31 µm

Description

Micro Linear Guide Series: Guide Rails: Available in international standard sizes of 5, 7, 9, 12, and 15. Each size comes in both standard and wide versions, totaling 10 different models. Sliders: Offered in standard and extended lengths, compatible with both standard and wide guide rails, resulting in a total of 20 different configurations.
