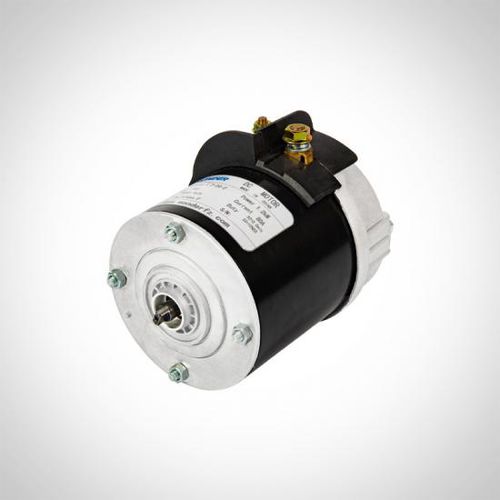

Brushed motor ZY105

DC24 V12 V

WONDER ZY105 Series motor is Permanent Magnet Brushed DC motor(PMDC), designed to drive hydraulic system in the field of material handling, forklift, aerial work platform. It adopts permanent magnet steel, rather than field winding. Rotor is carefully wounded and varnished, which helps motor in good insulated state and safety. High quality bearing runs the motor stable. Complete sealing and oil-resist protect motor properly. Compared to excitation DC motor, PMDC Brush motor is much smaller and lighter. In parallel, it can ensure the good performance in start and operation. All of which makes it a right choice for many hydraulic application. Main Tech Specifications: - Frame Size: 105mm - Output Power:800-1200W - Speed: 2000-4000r/m - Protection Class: IP40 - Insulation Class: F - Voltage range: 12v, 24v, 48v - Work duty: S1, S2-3min, S3-10% - Rotation: reversible - Parts: starter or thermal switch is option Industries: - Material Handling - Warehouse Logistic - Forklift, Lift - Agriculture & Aquaculture - Construction Application: - Motors For Hydraulic Mini Power - Motor For Tail Lift - Motor For Forklift - Motor For Reduction Box - Motors For Hydraulic System
