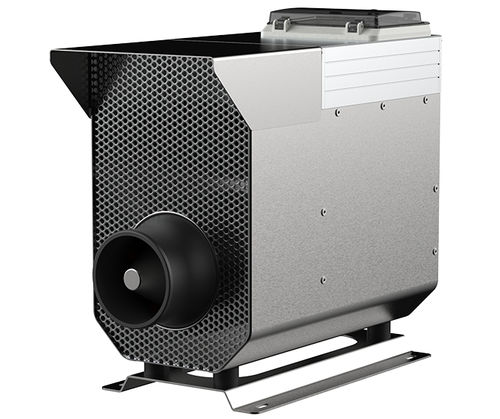

Air blower Axion One-WT
centrifugalprocessconveying

Air blower - Axion One-WT - Galex Ltd. - centrifugal / process / conveying
Air blower - Axion One-WT - Galex Ltd. - centrifugal / process / conveying
Air blower - Axion One-WT - Galex Ltd. - centrifugal / process / conveying - image - 2
Air blower - Axion One-WT - Galex Ltd. - centrifugal / process / conveying - image - 3
Air blower - Axion One-WT - Galex Ltd. - centrifugal / process / conveying - image - 4
Air blower - Axion One-WT - Galex Ltd. - centrifugal / process / conveying - image - 5
Add to favorites
Compare this product

Characteristics

Type
air
Technology
centrifugal
Applications
conveying, process
Voltage / frequency
400 V / 50 Hz
Flow

8.5 m³/min, 13 m³/min
(300.175 ft³/min, 459.091 ft³/min)

Operating pressure

280 mbar, 500 mbar
(4.061 psi, 7.252 psi)

Nominal power

7.5 kW
(10.197 hp)

Weight

22 kg
(48.5 lb)

Length

530 mm
(20.87 in)

Height

440 mm
(17.3 in)

Description

A new class of performance with the Axion One-WT. Engineered to excel, it delivers exceptional pressure up to 55kPa while operating at just 7.5kW-surpassing all conventional blowers in its category. Featuring integrated support for full range of 485-modbus sensors, transforming it from a simple blower into an automated process control unit. 50% Energy Saving Replacing a 15kW traditional blower with the 7.5kW Axion One,pays for itself in 6 months. Unmatched Efficieny for ETP Axion One-WT delivers exceptional 55kPa pressure output at only 7.5kW power input, ideal for intense aeration demands. Full Range 485 support Features integrated support for full range of 485-modbus sensors, transforming it from a simple blower into an automated process control unit. Axion One X730-WT An intelligent aeration hub that autonomously optimize output and maintain precise process conditions. Axion One X740-WT An intelligent aeration hub that autonomously optimize output and maintain precise process conditions.
